Autonics Controllers Counters CX series
#Grup produk P105022004
Kondisi Barang:
Authorized Partner
Spesifikasi
| Display Method | Counting display part- 2-digit 7-segment LCD, 4-digit 11-segment LCD Setting value display part- 6-digit 7-segment LCD |
|---|---|
| Counter Counting Range | -99999 to 999999 |
| Memory Protection | Approx. 10 years |
| Operation Method | Counter: Count up, Count down, Count up/down Timer: Count up, Count down |
| Output Operation | Signal On Delay, Power On Delay, On-Off Delay |
| Setting Range (s) | 0.001 to 999.999 |
| Terminal | Terminal block |
| Time Operation | Power On Start Signal On Start |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

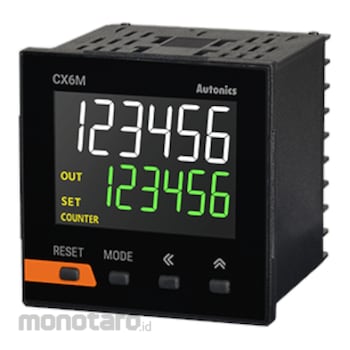

The CX series counter/timers feature LCD displays with easy-to-read white PV characters. The 11-segment display can display various alphanumeric characters for easier status readings. Users can switch between counter and timer modes for flexible application depending on requirements. The compact 64.5 mm rear-length size allows flexible installation in limited spaces. The units are available in selectable voltage input (PNP) / no-voltage input (NPN) type and universal voltage input types.
Feature
Common Features- LCD display with easy-to-read white PV characters
- Input type: voltage input (PNP) / no-voltage input (NPN) selectable (through parameter setting), universal voltage input type available
- One-shot output time: 0.01 to 99.99 seconds (in 0.01 second increments)
- Compact rear-length size (64.5 mm)
Counter Functions
- Prescale value setting range: 0.00001 to 99999.9
- Various input/output modes (11 input modes, 11 output modes)
- Set start point function
- Total count display mode: displays current count and aggregate count simultaneously
Timer Functions
- Various output modes (15 output modes)
- Time setting range: 0.001 second to 99999.9 hours
- Set output time to 0 feature.
