SKF Support Roller dengan Inner Ring, tanpa Flange Ring
#Grup produk P104079360
Spesifikasi
| Axial Guidance of Outer Ring | Yes |
|---|---|
| Bearing Material | Bearing steel |
| Bearing Part | Complete track roller |
| Cage | With |
| Chamfer Dimension Inner Ring r3,4 (mm) | min. 0.3 |
| Coating | Without |
| Lubricant | Grease |
| Number of Flanges, Outer Ring | 2 |
| Number of Rows | 1 |
| Outer Ring Profile | Crowned |
| Radial Internal Clearance | CN |
| Relubrication Feature | With |
| Rolling Elements | Needle rollers |
| Sealing | Seal on both sides |
| Sealing Type | Contact |
| Tolerance Class | Other |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

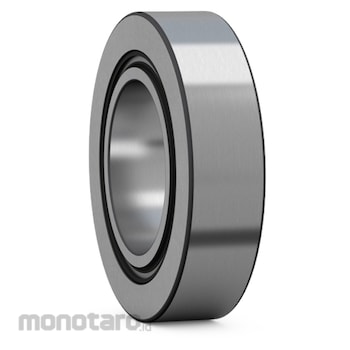

Support rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a single row needle roller bearing with an inner ring and have a thick-walled outer ring with a crowned running surface. They are supplied sealed and are ready-to-mount. The inner ring contains a lubrication hole to facilitate relubrication. The inner ring can be mounted separately from the outer ring and roller and cage assembly.
Warning
Image may differ from product. See technical specification for details.Feature
- High radial load carrying capacity- Able to withstand shock loads
- Ready to mount
- Separable design
- Integral sealing prolongs bearing service life
