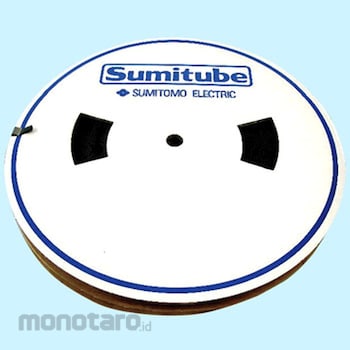

Sumitomo Electric Sumitube F2 (Z)
#Grup produk P103972893
Sebelum PPN:
Rp119.900 - Rp10.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Volume Resistivity (ohm.cm) | 1.0x1014 or more |
|---|---|
| Withstand Voltage | Before aging: AC2.5kVx60 seconds, no destruction After aging: 158 degrees Celsiusx7 days, AC2.5kVx60 seconds, no destruction |
| Construction | Single layer |
| Shrink Completion Temperature (°C) | 90 |
| Shrinkage Factor (%) | Inner diameter shrinkage: 50% or more Length change rate: 0 +/- 5% |
| Characteristic | Flame retardant, flexible, insulating |
| Color | Black |
| Conformity Standard | Compliant with UL224 (certification file No.E48762), CSA C22.2 No.198.1 (certification file No.LR33298), Electrical Appliance and Material Safety Law, RoHS Directive |
| Continuous Operating Temperature (°C) | -55 to 125 |
| Dielectric Breakdown Voltage (kV) | Before aging: AC2.5 or more After aging: AC2.5 or more (158 degrees Celsiusx7 days, residual rate 50% or more) |
| Elongation (%) | Before aging: 200% or more After aging: 100% or more (158 degrees Celsiusx7 days) |
| Material | Electron beam crosslinked soft flame retardant polyolefin resin |
| Ratio | 2:01 |
| Shrink Temperature | 90 degrees Celsius or higher |
| Tensile Strength (MPa) | Before aging: 10.4 or more After aging: 7.3 or more (158 degrees Celsiusx7 days) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Insulation, protection and reinforcement of wire ends and wire connections Wire color identification and bundling Insulation and protection of resistors and capacitors
Feature
- UL and CSA standard products Flame retardant (no chlorine-based flame retardant, no specific bromine-based flame retardant (PBDE s , PBB s )) FlexibleUlasan Produk
