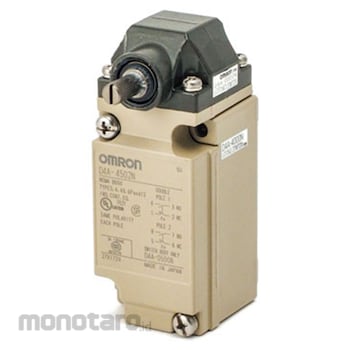

OMRON Small Heavy Equipment Limit Switch
#Grup produk P103639989
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Deskripsi
Small heavy-duty limit switch with improved sealing, impact resistance, and strength The double sealing structure of the rotating shaft is further strengthened, and the gasket full cover system ensures sealing. Wide temperature specification (-40 to +100°C: standard type). Adopts a block mount system that minimizes time loss during maintenance. UL, CSA, CCC standard acquired.
Feature
Withstand voltage (Between terminals of the same polarity ) 1000 VAC 50/60 Hz 1 min ( between charged metal part and ground) 2200 VAC 50/60 Hz 1 min (between each terminal and non-charged metal part) 2200 VAC 50/60 Hz 1 min. Mechanical durability 30 million times or more * Excluding holding type. Allowable operation frequency (Mechanical) 300 times / min (electrical) 30 times / min. Insulation resistance Between terminals of the same polarity, between charged metal parts and ground, between each terminal and non-charged metal parts 100 MΩ or more (at 500 VDC).Ulasan Produk
