Nabeya Bitech (NBK) Capricon MWS Series
#Grup produk P103520900

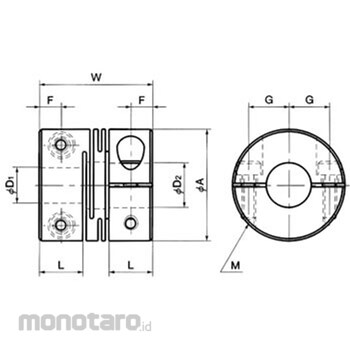

Spesifikasi
| Type | Slit Type |
|---|---|
| Shaft Hole Diameter D1 (Φmm) | 6 |
| Shaft Hole Diameter D2 (Φmm) | 6 |
| Outer Diameter A (Φmm) | 20 |
| Overall Length W (mm) | 20 |
| Maximum Torque (Nm) | 2 |
| Allowable Declination (°) | 1 |
| Axial Displacement (mm) | ± 0.2 |
| Maximum Shaft Hole Diameter (mm) | 8 |
| Dimension F (mm) | 3.8 |
| Dimension G (mm) | 6.5 |
| Thread Dimension M | M2.5 |
| Mass (g) | 13 |
| Dimension L (mm) | 7.65 |
| Maximum Speed (rpm) | 31000 |
| Moment of Inertia (kg.m²) | 7.5x10-7 |
| Regular Torque (N m) | 1 |
| Screw Tightening Torque (N m) | 1 |
| Static Torsional Spring Constant (N m/rad) | 200 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
