CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-00-40D Stroke 300
#Grup produk P103137922
Sebelum PPN:
Rp2.499.900 - Rp4.899.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Guaranteed Pressure Resistance (MPa) | 1.6 |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature

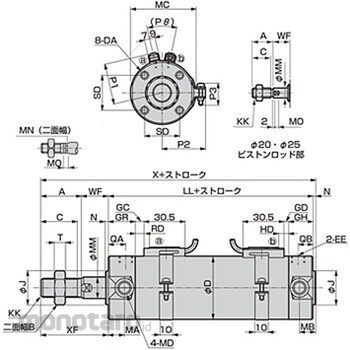

Simple design, overall length is short, easy to install work Dimension MO (mm)=6; Dimension DA=M6 depth 12; Dimension QB (mm)=12; Dimension D (mm)=47; Dimension EE=Rc1 / 8; Dimension XF (mm)=50; Dimension MA (mm)=12; Dimension C (mm)=27; Dimension WF (mm)=20; Dimension J (mm)=25; Dimension MM (mm)=16; Dimension QA (mm)=13; Dimension MC (mm)=44; Dimension A (mm)=30; Dimension KK (mm)=M14 x 1.5; Dimension N (mm)=2; Dimension X (mm)=130; Dimension T (mm)=8; Dimension B (mm)=22; Dimension LL (mm)=78; Dimension SD (mm)=26; Dimension MD=M10; Dimension MB (mm)=10; Dimension MN (mm)=14Ulasan Produk
