CKD New Joint GW (Fitting) / (Manifold (Single)
#Grup produk P103120524
Spesifikasi
| Negative pressure performance (kPa) | -100 |
|---|---|
| Maximum Working Pressure (MPa) | 1 |
| Working Fluid | Compressed air |
| Operating Temperature (°C) | -10 to 60 (but not frozen) |
| Used Tube | Soft nylon tube (F-12 * * ) / Urethane tube (U-95 * * , NU- * * ) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

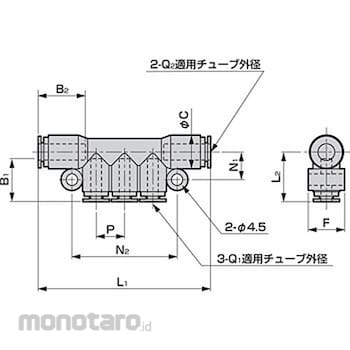

And allowed to flow diverted to bore minute full standard adopted flame heat resin, sealing the tube and fitting adopts V-shaped packing, and reliably sealed can be inserted with a light force Dimension C (mm)=12.5; Dimension N2 (mm)=39; Dimension L1 (mm)=64; Dimension F (mm)=13.5; Dimension B1 (mm)=16; Dimension P (mm)=10.5; Dimension L2 (mm)=18.5; Dimension N1 (mm)=10.5; Dimension B2 (mm)=18.5
