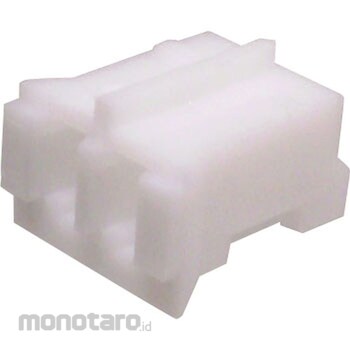

JST PC Board Connector PH Series Housing
#Grup produk P102905964
Spesifikasi
| Color | Natural (white) |
|---|---|
| Compatible | With post with base: B * B - PH - KS (LF) (SN), S * B - PH - KS (LF) (SN).Contact: BPH-002T-P0.5S, SPH-002T-0.5S, SPH-002T-P0.5L, SPH-004T-P0.5S |
| Electric AWG Wire Conjugation Range (#) | 32 to 24 |
| Material | 66 Nylon, UL 94 V-0 |
| Compatible Print Substrate Thickness (mm) | 0.8 to 1.6 |
| Contact Resistance (miliΩ) | Initial: 10 or less _ x 1000 D _. After environmental test: 20 or less |
| Insulation Resistance (MΩ) | Over 1000 |
| Operating Temperature Range (°C) | -25 to + 85 _ x 000 D _.(Including temperature rise value during energization) |
| Rated Current (A) | 2 AC, DC _ x 1000 D _.(When using AWG # 24) |
| Rated Voltage (V) | 100 AC, DC |
| Standard | Recognized E 60389 - x 000 D -. Certified LR 20812 _ x 000 D _. R 75087 |
| Withstand Voltage | AC 800 V, 1 minute |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Compact Design, Highly Reliable Contact, Box Type Post Attachment, Secure to Board Mounting, Surface Mounted (SMT) TypeOperating Temperature Range -25 to +85 degrees C (Including Temperature Rise Value During Energization)Compatible (Contact) BPH-002TUlasan Produk
