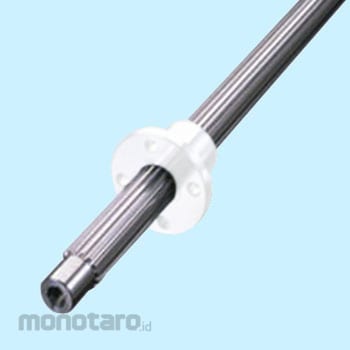

THK Spline Shaft
#Grup produk P102543667
Spesifikasi
| Compatible | Nut: DPM 2536, DPM 2550, DP 25 |
|---|---|
| Shaft Length | 1500mm |
| Shaft Outer Diameter | 26.9mm |
| Dimensions d0 | 25φ mm |
| Dimensions dR | 22.6φ mm |
| Number of Gears | 16 |
| Pitch Error | Single maximum: ± 0.025, cumulative maximum: ± 0.2/300mm |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Since the tooth profile of the shaft is Formed by cold rolling, the surface of the tooth surface is work hardened to 250 HV or more, and because it has a smooth mirror finish, it is excellent in abrasion resistance and movement by a combination of nuts is extremely high It is smooth. The internal structure of the tooth surface causes fiber flow along the contour of the tooth profile, the tissue at the root of the tooth is extremely honey, and the fatigue strength is increasing.
Warning
* Because the delivery date changes according to the order status, please confirm at the time of ordering Ulasan Produk
