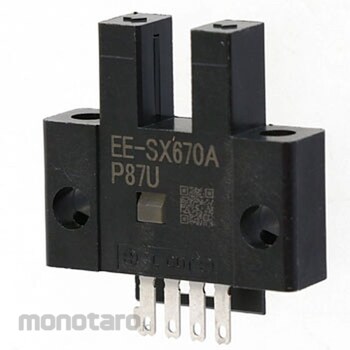

Non-modulated Through-beam type, Grooved Type (Standard) Appearance, Connector type, Sensing distance 5 mm, Dark-ON/Light-ON (selectable), NPN Open collector output
- Ambient humidity Operating: 5 to 85% RH Storage: 5 to 95% RH (with no icing or condensation)
- Ambient temperature Operating: -25 to 55°C Storage: -30 to 80°C (with no icing or condensation)
- Vibration resistance 20 to 2000 Hz, peak acceleration 100 m/s**2, 1.5-mm double amplitude 2 h each in X, Y, and Z directions (4 min periods)
- Material Case: Polybutylene phthalate (PBT) Emitter/Receiver Cover: Polycarbonate(PC)
- Response frequency elements 1 kHz min. (average 3 kHz) (See Measurement condition of Response frequency elements)
- Control output (Residual voltage) 0.8 V max. (at 100 mA load current), 0.4 V max. (at 40 mA load current).
Connection Method: Connector type (direct soldering possible).
OMRON Photo, Microsensor Groove Type Connector Type (DC Light)
#Grup produk P102414912
Spesifikasi
| Operation Mode | Dark-ON/Light-ON (selectable) |
|---|---|
| Type | Thin connector type (DC light) |
| Ambient Humidity (% RH) | Operation: 5-85, storage: 5-95 (however, do not freeze or condense) |
| Ambient Illumination to Use (Lx) | Light receiving surface illuminance fluorescent lamp: 1000 or less |
| Case Material | Polybutylene terephthalate (PBT) |
| Control Output | NPN open collector output DC5~24V 100mA or less Residual voltage 0.8V or less (when load current is 100mA), residual voltage 0.4V or less (when load current is 40mA), off current 0.5mA or less |
| Cover Material | Polycarbonate |
| Current Consumption (mA) | 12 or less (L terminal open) |
| Detection Distance (mm) | 5 (groove width) (infrared light) |
| Detection Method | Transmission type (groove type) |
| Emitting Element | Infrared light emitting diode |
| Output | NPN |
| Power Supply Voltage (V) | DC5~24 ± 10% Ripple (pp) 10% or less |
| Protection Class | IEC60529 standard IP50 |
| Response Frequency (Hz) | 1k or more (average value is 3k |
| Standard Sensing Object (mm) | 2 x 0.8 or more opaque body |
| Type of Connection | Connector type (4 poles) (direct soldering possible) |
| Vibration Resistance (Durability) | 20~2000Hz (peak acceleration 100m/s2) Double amplitude 1.5mm X, Y, Z directions 2h (4min cycle) |
