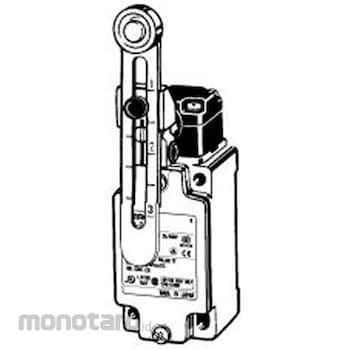

OMRON Safety, Limit Switch
#Grup produk P102414596
Spesifikasi
| Rated Sealed Thermal Current (A) | 20 (EN60947-5-1)(I the) |
|---|---|
| Protection Class | IP67(EN60947-5-1) |
| Vibration Resistance (Malfunction) | 10-55Hz 0.75mm single amplitude |
| Electric Shock Protection Class | Class I (with ground terminal) |
| Type | General-purpose limit switch |
| Allowable Operating Speed (mm-m/s) | 1 to 0.5 |
| Contact Resistance (miliΩ) | 25 or less |
| Electrical Durability | 500,000 operations or more (250 VAC, 10 A resistance load) |
| Impact Resistance Durability (m/s²) | 1000 |
| Inrush Current (A) | Up to 30 |
| Insulation Resistance (MΩ) | 100 or more between homopolar terminals and between terminals and non-charged metal parts (at 500 VDC) |
| Mechanical Durability (times) | 30 million or more |
| Minimum Applicable Load | 5V DC, 180mA resistance load (N level reference value) |
| Operating Humidity Range | 95% RH or less |
| Operating Temperature Range (°C) | -40 to +80 (no icing) |
| Rated Frequency (Hz) | 50/60 |
| Rated Impulse with Stand Voltage (kV) | Between terminals of the same pole: 2.5 Between each terminal and ground: 4 |
| Rated Insulation Voltage (V) | 600(EN60947-5-1)(Ui) |
| Shock Resistance Malfunction (m/s²) | 300 or more |
| Type Of Actuator | Variable roller lever type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Robust safety limit switch with metal housing Slow-action and snap-action contact with certified direct opening operation certification.
