- Specification: Indoor use.
- Operating Environment: At the point where the dust is many and seeing from the use outside the ambient temperature range, and horizontal position, the pump, cannot do the kind of installation which is after from the motor.

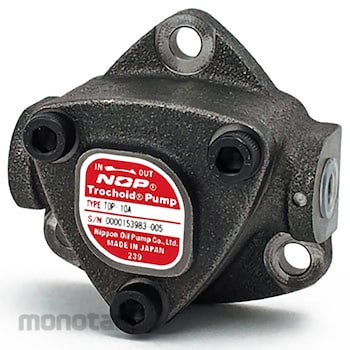

Nippon Oil Pump Trochoid Pump
#Grup produk P102395121
Spesifikasi
| Dimension F (mm) | 11 |
|---|---|
| Dimension G (mm) | 6 |
| Dimensions a (mm) | 55 |
| Dimensions D(ɸmm) | Rc1/8 |
| Fluid | Oil |
| Axial Shape | flat Shaft (double chamfering) |
| Dimension H (mm) | 11.5 |
| Dimensions b (mm) | 35.5 |
| Dimensions e (mm) | 8 |
| Direction of Rotation | Rotate left from drive shaft |
| Maximum Pressure (MPa) | 0.5 |
| Maximum Rotation Speed (rpm) | 3000 |
| Operating Ambient Temperature (°C) | -20 to 40 |
| Operating Temperature Range (°C) | -5 to 80 |
| Theoretical Delivery (cm³/rev) | 0.8 |
