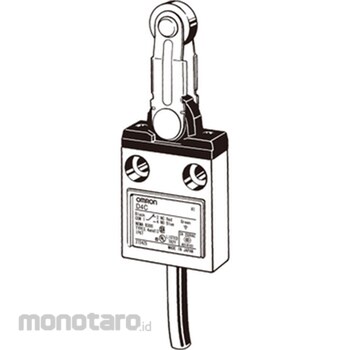

OMRON Small limit switch D4C
#Grup produk P102370706
Spesifikasi
| Vibration Resistance (Malfunction) | 10-55Hz Double vibration line 1.5mm |
|---|---|
| Protection Class | IP67 |
| Ambient Relative Humidity (RH) | 35-95 or less |
| Type | Compact limit switch |
| Cable Length (m) | 5 (VCTF oil-resistant cord) |
| Electrical Durability | 200,000 operations or more (125 VAC, 5 A resistance load) |
| Impact Resistance Durability (m/s²) | 1000 or more |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Mechanical Durability | 10 million times or more |
| Operating Ambient Temperature (°C) | -10 to 70 (no icing) |
| Rated Frequency (Hz) | 50/60 |
| Rated Insulation Voltage (V) | (Ui)300(EN60947-5-1) |
| Shock Resistance Malfunction (m/s²) | 500 or more |
| Withstand Voltage | (Between terminals of the same polarity) AC1000V 50/60Hz 1min, (Between live metal parts and ground) AC1500V 50/60Hz 1min/Uimp 2.5kV (EN60947-5-1), (Between each terminal and non-chargeable metal parts) AC1500V 50/ 60Hz 1min/Uimp 2.5kV (EN60947-5-1) |
