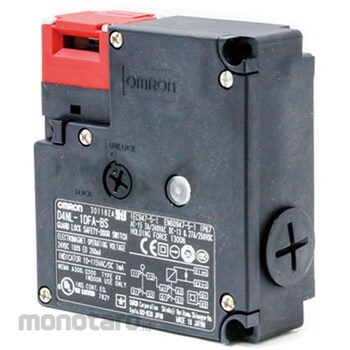

OMRON Compact electromagnetic lock, safety door switch D4NL
#Grup produk P102370681
Sebelum PPN:
Rp2.799.900 - Rp2.899.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Protection Class | IP67(EN60947-5-1) |
|---|---|
| Ambient Relative Humidity (RH) | 95 or less |
| Allowable Operating Speed (m/s) | 0.05 to 0.5 |
| Contact Resistance (miliΩ) | 25 or less (per contact) |
| Electric Shock Protection Class | Class II (double insulation) |
| Electrical Durability | 500,000 operations or more (250 VAC, 3 A, resistive load) |
| Family Type | D4NL |
| Impact Resistance Durability (m/s²) | 1000 or more |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Mechanical Durability (times) | 1,000,000 or more |
| Minimum Applicable Load (V-mA) | DC 5-1 resistance load (N level reference value) |
| Operating Ambient Temperature (°C) | -10~+55 (no freezing) |
| Operating Force (N) | (Direct opening) Minimum 60 (EN60947-5-1) |
| Pollution Degree (Environment to Use) | Pollution degree 3 (EN60947-5-1) |
| Rated Frequency (Hz) | 50/60 |
| Rated Impulse with Stand Voltage (kV) | Between same pole terminals: 2.5 Between different pole terminals: 4 Between each terminal and non-charged metal part: 6 |
| Rated Insulation Voltage (V) | (Ui)300(EN60947-5-1) |
| Shock Resistance Malfunction (m/s²) | 100 or more |
| Vibration Resistance (Malfunction) | 10-55Hz 0.75mm single amplitude |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
