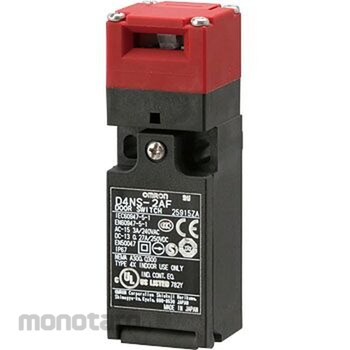

OMRON Small safety, door switch D4NS
#Grup produk P102370663
Spesifikasi
| Allowable Operating Speed (m/s) | 0.05 to 0.5 |
|---|---|
| Ambient Relative Humidity (RH) | 95 or less |
| Protection Class | IP67(EN60947-5-1) |
| Type | Standard type |
| Contact Resistance (miliΩ) | 25 or less |
| Electric Shock Protection Class | Class II (double insulation) |
| Electrical Durability | 500,000 times or more (AC250V 3A, resistance load) 300,000 times or more (AC250V 10A, resistance load) |
| Insulation Resistance (MΩ) | over 100 |
| Material (Head) | plastic |
| Mechanical Durability | 1,000,000 times or more |
| Minimum Applicable Load (V-mA) | DC5-1 resistance load (N level reference value) |
| Mounting Side | 4-way mounting possible (front direction at shipping) |
| Operating Ambient Temperature (°C) | -30 to +70 (but no freezing) |
| Operating Force (N) | (Direct opening) Standard type minimum 60 (Direct opening) High load type minimum 80 |
| Rated Frequency (Hz) | 50/60 |
| Rated Insulation Voltage (V) | (Ui)300 |
| Vibration Resistance (Malfunction) | 10-55Hz 0.75mm single amplitude |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Next-generation safety, door switch that supports multiple contacts, saving man-hours, micro loads. In addition to the conventional 1NC / 1NO, 2NC contact configuration, we have stocked 3 contact type with 2NC / 1NO, 3NC.We also released M12 connector type, which realizes saving man-hours and makes replacement work easier.Standardized Au clad contact with high contact reliability. It corresponds to both general load and micro load.
