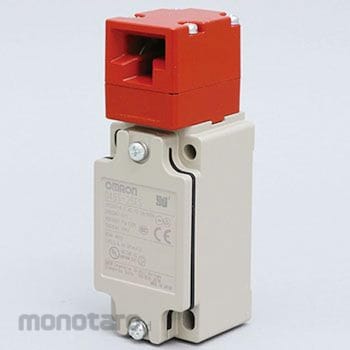

OMRON Safety, door switch D4BS
#Grup produk P102370654
Spesifikasi
| Ambient Relative Humidity (RH) | 95 or less |
|---|---|
| Protection Class | IP67(EN60947-5-1) |
| Rated Sealed Thermal Current | 20(EN60947-5-1) |
| Allowable Operating Speed (mm/s) | 0.1 to 0.5 |
| Contact Resistance (miliΩ) | 25 or less |
| Electric Shock Protection Class | Class I (with ground terminal) |
| Electrical Durability | 500,000 operations or more (250 VAC, 10 A resistance load) |
| Insulation Resistance (MΩ) | Between homopolar and heteropolar terminals, between each terminal and ground, between each terminal and uncharged metal part: 100 or more (at 500 VDC) |
| Mechanical Durability | 1,000,000 times or more |
| Mounting Side | (Head) 4 orientations available (front view at shipping) |
| Operating Ambient Temperature (°C) | -40 to +80 (no icing) |
| Operating Force (N) | (Direct opening) Minimum 19.61 (EN60947-5-1) |
| Pollution Degree (Environment to Use) | 3(EN60947-5-1) |
| Rated Frequency (Hz) | 50/60 |
| Rated Impulse with Stand Voltage (kV) | Between same polarity terminals, between different polarity terminals, between each terminal and ground: 4 |
| Rated Insulation Voltage (V) | (Ui)600(EN60947-5-1) |
| Shock Resistance (m/s2) | 1000 or more |
| Shock Resistance Malfunction (m/s²) | 300 or more |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
When opening the protective door of a machine tool, etc., the contact is directly opened by a special operation key, and the control circuit is cut off. Acquired EN standard corresponding to CE marking compliance. UL, CSA certification acquired. By the direct opening operation mechanism (NC contact side only), open the switch contacts when opening the protective cover. The direct opening operation authentication of the EN standard is marked on the switch. Prevent erroneous operation and fake operation by dedicated operation keys. -40 to + 80 degree Celsius and extensive temperature specification. The protection structure of the switch box part is IP 67 certification (EN 60947-5-1)
