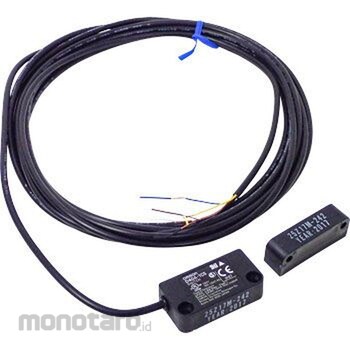

OMRON Small non-contact door switch D40A
#Grup produk P102370645
Spesifikasi
| Vibration Resistance | 10~55~10 Hz, single amplitude 0.75 mm (double amplitude 1.5 mm) |
|---|---|
| Protection Class | IP67 |
| Auxiliary Output | Photocoupler output DC24V Load current: 10mA |
| Cable Length (m) | 5 |
| Ambient Relative Humidity (RH) | 25 to 85 |
| Display LED | Actuator non-detection (lights red), error occurs (blinks red), actuator detection (lights yellow), actuator detection, and non-contact door switch input OFF (blinks yellow) |
| Insulation Resistance (MΩ) | Between live parts and case: 50 or more (DC500V mega) |
| Material (Main Unit) | PBT resin |
| Mounting | M4 screw |
| Number of Connections | 30 (however, the maximum wiring length is 100m) |
| Operating Ambient Temperature (°C) | -10 to + 65 (However, Do not freeze or condense) |
| Operating Distance (mm) | (OFF → ON) 5 or more, (ON → OFF) 15 or less |
| Power Consumption (W) | 0.5 or less |
| Shock Resistance (m/s2) | 300 or more |
| Tightening Torque (N m) | 1 |
| Type | Standard type |
| Withstand Voltage | Between live parts and case: 1000 VAC for 1 minute |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Employing electronic detection method realizes more stable operation than conventional non-contact type door switch
