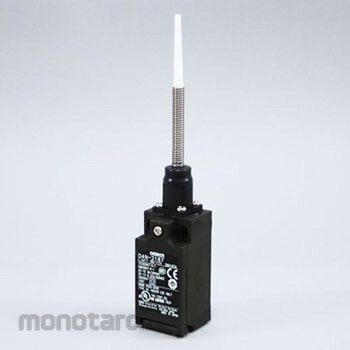

OMRON Small Safety, Limit Switch General Purpose Limit Switch 2 Contact Series D4N
#Grup produk P102369889
Spesifikasi
| Vibration Resistance (Malfunction) | 10-55Hz 0.75mm single amplitude |
|---|---|
| Ambient Relative Humidity (RH) | 95 or less |
| Protection Class | IP67(EN60947-5-1) |
| Built-in Switch | 1NC / 1NO (snap action) |
| Shock Resistance (Malfunction) | 300m/s<sup>2</sup> |
| Allowable Operating Speed (mm/s) | 1 to 500 (D4N-1120) |
| Contact Resistance (miliΩ) | 25 or less |
| Electric Shock Protection Class | Class II (double insulation) |
| Electrical Durability | 500,000 operations or more (250 VAC, 3 A, resistance load), 300,000 operations or more (250 VAC, 10 A, resistance load) |
| Impact Resistance Durability (m/s²) | 1000 |
| Insulation Resistance (MΩ) | over 100 |
| Mechanical Durability (times) | 15 million or more |
| Minimum Applicable Load (V-mA) | DC5-1 resistance load (N level reference value) |
| Open thermal Current (A) | 10(EN60947-5-1) |
| Operating Ambient Temperature (°C) | -30 to +70 (but no freezing) |
| Pollution Degree (Environment to Use) | Pollution degree 3 (EN60947-5-1) |
| Rated Frequency (Hz) | 50/60 |
| Rated Impulse with Stand Voltage (kV) | Between same pole terminals: 2.5 Between different pole terminals: 4 Between each terminal and non-charged metal part: 6 |
| Rated Insulation Voltage (V) | (Ui)300 |
| Type Of Actuator | Plastic rod type |
