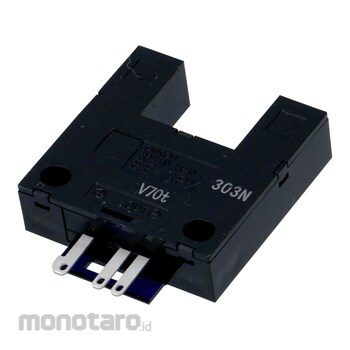

OMRON Photo Microsensor Wide Groove
#Grup produk P102368260
Spesifikasi
| Response Frequency (Hz) | over 100 |
|---|---|
| Output | NPN |
| Ambient Humidity (% RH) | Operating: 5 to 85, Storage: 5 to 95 |
| Ambient Illumination to Use (Lx) | Light receiving surface illuminance Incandescent, sunlight: 3000 or less each |
| Protection circuit | Power supply reverse connection protection, output reverse connection protection |
| Type of Connection | Connector type (not solderable) |
| Control Output | NPN voltage output, load power supply voltage 5 to 24 VDC, load current 80 mA or less, residual voltage 1.0 V or less (when load current is 80 mA), residual voltage 0.4 V or less (when load current is 10 mA) |
| Current Consumption (mA) | 15 or less |
| Detection Method | Transmission type |
| Differential Distance | 0.05 or less |
| Emitting Element | Infrared light emitting diode |
| Indicator Lamp | Lights up when light is received (red) |
| Material (Main Unit) | Polycarbonate |
| Power Supply Voltage (V) | 12 to 24±10% DC, ripple (pp) 5% or less |
| Protection Class | IEC standard IP50 |
| Standard Sensing Object (mm) | Opaque body 2.2 x 0.5 or more opaque body |
| Vibration Resistance (Destruction) | 10~55 Hz, 1.5 mm double amplitude, 2 hours each in X, Y, and Z directions |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Realized noise resistance performance equivalent to photoelectric sensor with built-in amplifier.Common mode noise resistance performance 30 times or more (compared with conventional products).Inverter noise performance 10 times or more (relative to conventional products). Built-in reverse connection protection circuit.Convenient connector method for wiring and maintenance.With light indication indicator light for convenient adjustment and operation check
