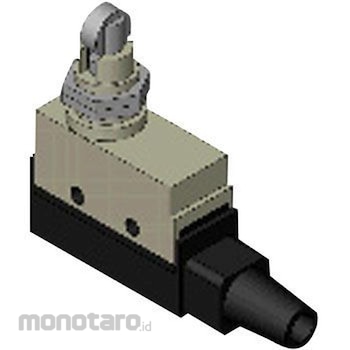

OMRON Small enclosed switch SHL
#Grup produk P102367058
Spesifikasi
| Rated Frequency (Hz) | 50/60 |
|---|---|
| Ambient Relative Humidity (RH) | 35 to 95 (with no icing) |
| Allowable Operating Speed (mm-m/s) | 0.1 to 0.5 (in case of hinge lever) |
| Contact Resistance (miliΩ) | 15 or less (initial value, built-in switch only) |
| Impact Resistance Durability (m/s²) | 1000 or more |
| Mechanical Durability | 10 million times or more |
| Operating Ambient Temperature (°C) | -10-80 (no icing) |
| Operation Indicator Lamp | Without operation indicator |
| Protection Class | IP67(EN60947-5-1) |
| Rated Insulation Voltage (V) | (Ui)150(EN60947-5-1) |
| Rated Voltage (V) | AC125, 250, 500, DC8, 14, 30, 125, 250 |
| Shock Resistance Malfunction (m/s²) | 300 or more |
| Type | General form |
| Vibration Resistance (Malfunction) | 10~55Hz double amplitude 1.5mm |
| Wire Diameter (mm) | (Lead wire) 0.18 |
| Withstand Voltage | (同極端子間) AC1000V 50/60Hz 1min (各端子と非充電金属部間) AC2000V 50/60Hz 1min/Uimp 2.5kV(EN60947-5-1) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Small general-purpose weft type. The micro load type is also series. EN, UL, CSA, CCC standards acquired. Built in a robust and precise die-cast case, coils boasting high durability and a built-in spring type switch. It is compact and can be used for applications that are unreliable in strength by using a single microswitch. Pull out direction of the cord can be withdrawn from either the left or right by replacing the terminal protective cover. Sealability conforming to IP 67 of IEC.
