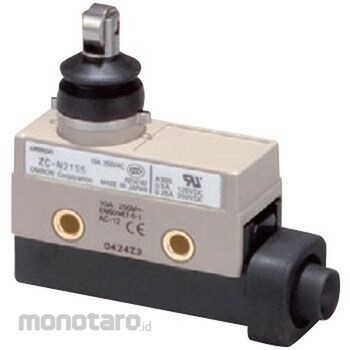

OMRON Compact encapsulated switch ZC 55
#Grup produk P102367003
Spesifikasi
| Protection Class | IP67 |
|---|---|
| Withstand Voltage | Between same pole terminals AC1000V 50 / 60Hz 1min, Between each terminal and non-charged metal part AC2000V 50 / 60H 1min |
| Electrical Durability | 500,000 times or more |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Allowable Operating Speed (mm-m/s) | 0.05 to 0.5 |
| Ambient Relative Humidity (RH) | 35 to 95 |
| Applicable Standard | UL/CSA/TUV(EN60947-1, EN60947-5-1)/CCC(GB14048.5) |
| Contact Resistance (miliΩ) | 15 or less (initial value, built-in switch only) |
| Electric Shock Protection Class | Class II |
| Family Type | ZC |
| Mechanical Durability | 10 million times or more |
| Operating Ambient Temperature (°C) | -10-80 (no icing) |
| Operation Environment | Pollution degree: 3 (IEC947-5-1) |
| Operation Indicator Lamp | None |
| Rated Insulation Voltage (V) | AC1000 |
| Vibration Resistance (Malfunction) | 10~55Hz double amplitude 1.5mm |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
High durability of 10 million times or more, small size, highly accurate enclosed switch with built-in micro switch with high repetition accuracy. . The mounting pitch is the same as shape Z. .Compared with the general limit switch, the force (OF) required for operation is small.
