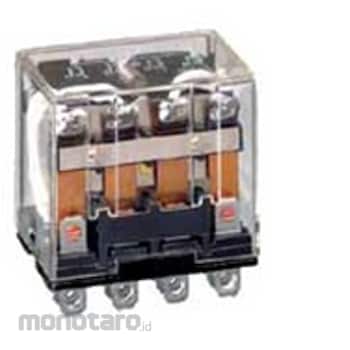

OMRON General Purpose Relays, Built-in LED Indicator Type (LY4N)
#Grup produk P102127070
Spesifikasi
| Ambient Humidity (%RH) | 5 to 85 |
|---|---|
| CR Circuit | Nothing |
| Contact Configuration | 4c |
| Contact Form | single |
| Contact Rated Control Capacity (V-A) | AC110-10/DC24-10, AC250-10 (resistive load) |
| Contact Resistance (miliΩ) | 50 or less Based on DC5V 1A voltage drop method. |
| Electrical Durability | 200,000 times or more (rated load switching frequency 1800 times/h) |
| Impact Resistance Durability (m/s²) | 1000 |
| Indicator Light | Yes |
| Insulation Resistance (MΩ) | 100 or more Measure the same points as in the withstand voltage section using a 500V DC insulation resistance meter. |
| Maximum Allowable Contact Current (A) | 10 |
| Maximum Allowable Contact Voltage (V) | AC250/DC125 |
| Maximum Opening/Closing Frequency (times/hour) | 18000 (mechanical) |
| Maximum Switching Frequency (times/hour) | 1800 |
| Maximum Value of Contact Current (A) | Resistive load/10, inductive load/10 |
| Mounting Shape | Standard type |
| Number of Poles | 4 |
| Number of pins (pins) | 14 |
| Operating Time (ms) | 25 or less (when rated operating voltage is applied, contact bounce not included. Ambient temperature condition +23℃) |
| Operating Voltage (%) | 80 or less |
| Rated Current (A) | 10 |
| Recovery Time (ms) | 25 or less, when the rated operating voltage is applied, not including contact bounce. |
| Shape | LY4N |
| Shock Resistance Malfunction (m/s) | 200 |
| Terminal Shape | plug-in terminal |
| Vibration Resistance (Durability) | 10~55~10Hz Single amplitude 0.5mm (double amplitude 1.0mm) |
| Vibration Resistance (Malfunction) | 10~55~10Hz Single amplitude 0.5mm (double amplitude 1.0mm) |
| With or Without Diode | Nothing |
| Withstand Voltage (V/minute) | Between coil and contacts: AC2000 50/60Hz, between contacts of different polarity: AC2000 50/60Hz, between contacts of the same polarity: AC1000 50/60Hz |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
General Purpose Relays, Built-in LED indicator type, Plug-in terminal, 4 Poles, Coil Ratings 100 VAC / 110 VAC
