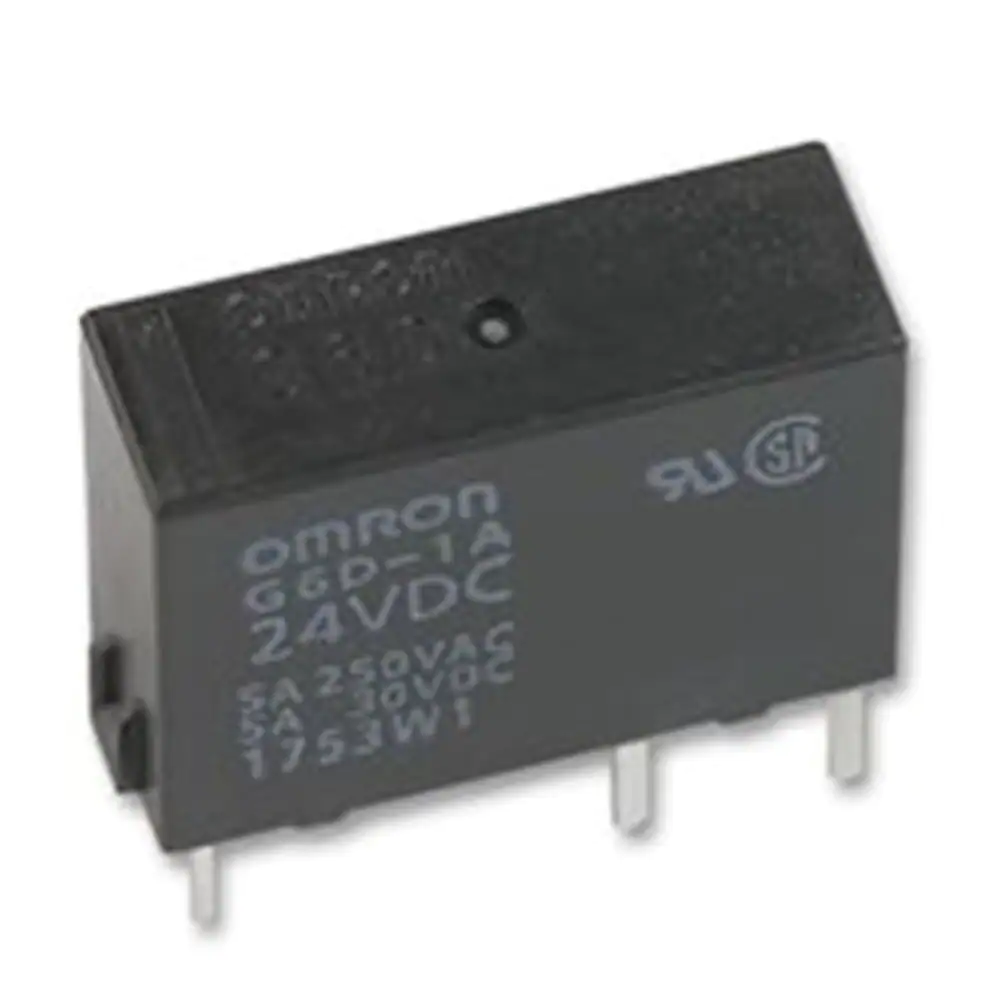

OMRON PCB Relay
#Grup produk P102126967
Spesifikasi
| Item Code | G6D 8021A |
|---|---|
| Ambient Humidity (%RH) | 5 to 85 |
| Coil Rated Voltage (V) | DC24 |
| Coil Resistance (ohm) | 2880±10% (coil temperature +23℃) |
| Contact Configuration | 1a |
| Contact Material | Ag alloy (Cd free material) |
| Contact Mechanism | single |
| Contact Resistance (miliΩ) | 100 or less (DC5V 1A voltage drop method) |
| Electrical Durability | (Resistive load) AC250V 5A/70,000 times or more DC30V 5A/70,000 times or more AC250V 2A/300,000 times or more DC30V 2A/300,000 times or more (Opening/closing frequency 1800 times/h) |
| Failure Rate P Level (V-mA) | DC5-10 (reference value: when opening/closing frequency is 120 times/min) |
| Impact Resistance Durability (m/s²) | 1000 |
| Impact Voltage (V) | Between coil and contact/6k(1.2x50μs) |
| Insulation Resistance (MΩ) | 1000 or more (DC500V) |
| Maximum Allowable Voltage (V) | 160%(at23℃) |
| Maximum Value of Contact Current (A) | 5 |
| Maximum Value of Contact Voltage (V) | AC250, DC30 |
| Mechanical Durability | More than 20 million times (opening/closing frequency 18,000 times/h) |
| Number of Poles | 1 |
| Operating Ambient Temperature (°C) | -25 to +70 (no freezing or condensation) |
| Operating Time (ms) | less than 10 |
| Operating Voltage (%) | 70 or less (however, 75 or less only when mounted upside down) |
| Power Consumption (mW) | Approximately 200 |
| Protection Class | Plastic seal construction |
| Purpose | Control equipment output applications |
| Rated Current (A) | 5 |
| Rated Current (mA) | 8.3±10% (coil temperature +23℃) |
| Rated Load (V-A) | AC250-5, DC30-5 |
| Rated Voltage (V) | DC24 |
| Recovery Time (ms) | 5 or less |
| Return Voltage | More than 10 |
| Shock Resistance Malfunction (m/s) | 100 |
| Terminal Shape | Printed circuit board terminal |
| Vibration Resistance (Durability) | 10~55~10Hz Single amplitude 0.75mm (Double amplitude 1.5mm) |
| Vibration Resistance (Malfunction) | 10~55~10Hz Single amplitude 0.75mm (Double amplitude 1.5mm) |
| Withstand Voltage (V/minute) | (Between coil and contacts) AC3000 50/60Hz, (Between contacts of the same polarity) AC750 50/60Hz |
| types | power relay |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
PCB Relay
