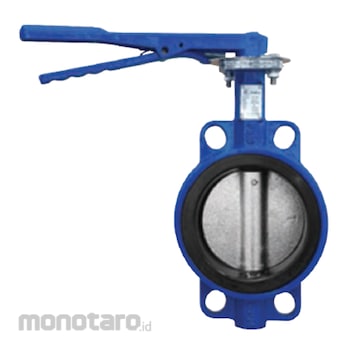

Fivalco Wafer Butterfly Valve F1116 DI Body, EPDM Seat, JIS 10K, PN 16, Lever, Disc. 304 2inch 1pc

Name: Fivalco Wafer Butterfly Valve F1116 DI Body, EPDM Seat, JIS 10K, PN 16, Lever, Disc. 304 2inch 1pc
Brand: Fivalco
SKU: S051864873
Price: 359900 IDR
Availability: InStock

#Nomor SKU S051864873

Fivalco

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	F1116
Unit	1pc
Size (inch)	2
Body Design	Wafer
Working Pressure (Bar)	16
Working Temperature (°C)	-20 to 110
Suitable Media	Water
Operator	Lever
Connection	JIS B2239 10K / 16K
Optional Accessories	Chain Wheel, Limit Switch
Dimension H (mm)	68.6
Dimension H1 (mm)	141.2
Dimension H2 (mm)	15
Dimension L (mm)	42
Dimension L1 (mm)	46.1
Body Material	Ductile Iron
Seat Material	EPDM
Disc Material	Stainless Steel 304
Stem Material	Stainless Steel 316
Shell Test Pressure (x1.5) (bar)	24
Seat Test Pressure (x1.1) (bar)	17.6
Valve Coefficient (Cv)	135
Berat (Kg)	8.0
Tanggal Produk Terdaftar	16 December 2025
Terakhir Diperbaharui	17 December 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Warning

Image on this page only as Representative Image, Please check the specifications of each size and color for details

Feature

- Higher strength for disc with pinned single shaft ensure optimal alignment
- Centrally mounted disc and hydrodynamic design minimize pressure loss
- Can be installed at horizontal or vertical pipe line
- Phenolic backed rubber seat is non-collapsible, stretch resistant and easily replaceable
- Excellent flow characteristic with flow in either direction
- Precision machining of disc for low operating torque
- Design conforms to BS EN 593 / BS 5155 / MSS SP-67 / API 609
- Applicable for Building Services, Air-Conditioning, Fire Protection, Cold Water Plumbing, Hot Water System, Water Supply Works, Water Treatment Plant, General Industries
