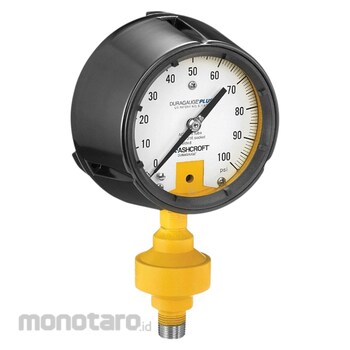

ASHCROFT Acid Sensing Gauge and Seal Assembly 45ALD1S1HH04H200# ASME B40.100 200psi Maximum Primary Scale Pressure Measurement 1pc
Rp45.999.900
Persediaan
Spesifikasi Produk
| Model Number | 45ALD1S1HH04H200# |
|---|---|
| Unit | 1pc |
| UNSPSC | 31160000 |
| Pressure Range (psi) | 0 to 200 |
| Primary Scale Units | psi |
| Accuracy (%) | ±1.00 |
| Accuracy Grade | ASME B40.100 |
| Case Material | Phenolic |
| Mounting Type | Stem-Mount |
| Process Connection Location | Bottom |
| Process Connection Gender | Male |
| Socket Material | Hastelloy C-276 |
| Sensor Material | 316 SS |
| Process Connection Type | NPT |
| Process Connection Size (inch) | 1/2 |
| Pressure Range Type | Pressure |
| Pressure Gauge Type | Process Pressure Gauge with Diaphragm Seal |
| Maximum Primary Scale Pressure Measurement (psi) | 200 |
| Minimum Primary Scale Pressure Measurement (psi) | 0 (zero) |
| Case Liquid | Halocarbon |
| Includes Acid Leak Detection | Acid Leak Detection Included |
| Maximum Seal Process Media Temperature (°F) | 300 |
| IP Rating | IP66 |
| Series | ALD |
| Lens Material | Safety Glass |
| Standards | NACE |
| Bezel Material | Polycarbonate |
| Case Diameter (inch) | 5.81 |
| NEMA Enclosure Rating | 4X |
| Blowout Safety Back | Yes |
| Case Finish | Phenolic |
| Cleaned for Oxygen Service | No |
| Diaphragm Seal Type | Threaded |
| Field Fillable | Yes |
| Freeze Resistant Movement | No |
| Liquid-Filled Case | Yes |
| Pointer Material | Aluminium |
| Seal Diaphragm Material | Hastelloy C-276 |
| Seal Fill Liquid | Halocarbon |
| Seal Lower Housing Material | Hastelloy C-276 |
| Panel Mountable | No |
| Maximum Seal Working Pressure (psi) | 1500 |
| Minimum Seal Process Media Temperature (°F) | -70 |
| Nominal Dial Diameter (inch) | 4-1/2 |
| Berat (Kg) | 1.8 |
| Tanggal Produk Terdaftar | 17 July 2025 |
| Terakhir Diperbaharui | 24 December 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Acid leak detection gauges visually confirm a leak by changing from yellow to red when a pH of three or less is detected. They also measure low and high positive pressures, vacuum, and compound ranges. Applications include chemical and petrochemical plants, oil rigs, mining and metals, pulp, paper, and refineries.
