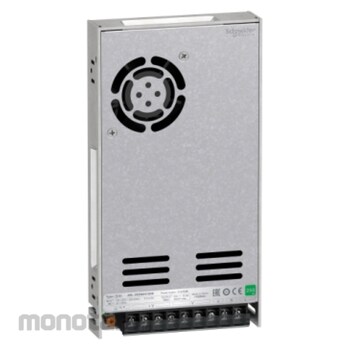

Schneider Electric Single Phase Power Supply ABL2REM24100K 1pc
Rp1.799.900
Persediaan
Spesifikasi Produk
| Model Number | ABL2REM24100K |
|---|---|
| Unit | 1pc |
| Product Range | Easy Modicon ABL2 |
| Product or Component Type | Power supply |
| Power Supply Type | Regulated switch mode |
| Rated Power (W) | 252 |
| Main Input Voltage (V) | 100-120 AC single phase; 200-240 |
| Output voltage (V) | 24 DC |
| Power Supply Output Current (A) | 10.5 |
| Operating Position | Any position |
| Vibration Resistance | 4gn (f= 10-500 Hz) conforming to IEC 61131-2 |
| Input Voltage Limits (V) | 90-132; 180-264 |
| Network Frequency (Hz) | 47-63 |
| Inrush Current (A) | 60 (at 100-120V AC); 60 (at 200-240V AC) |
| Efficiency | 87% |
| Power Dissipation (W) | 37.6 |
| Current Consumption (A) | 2.5 (at 240V) |
| Input Protection Type | Integrated fuse (not interchangeable) |
| Output voltage limits (V) | 20.4-27.6 |
| Name of Test | Electromagnetic hypersensitivity (EHS) conforming to IEC 61000-6-2 level A |
| Cos Phi | 0.5 |
| Line and Load Regulation | ±1% |
| Berat (Kg) | 0.7 |
| Tanggal Produk Terdaftar | 07 July 2025 |
| Terakhir Diperbaharui | 17 March 2026 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
This power supply belongs to Easy Modicon power supply range (formely known as Phaseo Easy). It is a regulated switch mode 24V DC power supply, model 250W, with a 100V to 240V AC output voltage, and 252W nominal power. Its output current is 10.5A. It offers better performance with cost effective. Its cooling is based on forced air, with an integrated DC fan. It has a manual voltage switching. Its overload hiccup protection is 110-150%. It measures 215mm wide x 115mm high x 30mm deep. This power supply is fitted for repetitive machines. ABL2 ps are certified with: CE, EAC, KC, RCM, EN62368-1(safety), EN 61000-6-2, EN 61000-4-2/3/4/5/6/8/11 (EMC), 55032 class B, RoHS. This power supply has fixing holes for panel mounting or the 4-corner bracket mounting. Better performance with cost effective. Smart design.
