Yoshitake Pressure Reducing Valve GP-2000 (JIS 10K FF) End Flange Connection 125A 0.10 to 0.85MPa 1pc
Rp95.999.900
Persediaan
Spesifikasi Produk
| Model Number | GP-2000 |
|---|---|
| Unit | 1pc |
| Material | Main valve / valve seat: SUS, pilot valve / pilot valve seat: SUS |
| Valve Seat Leakage | 0.01% or less of rated flow rate |
| Material (Main Unit) | FCD450 |
| Type | Pilot Type Diaphragm Type |
| Operating Temperature Range (°C) | 220 |

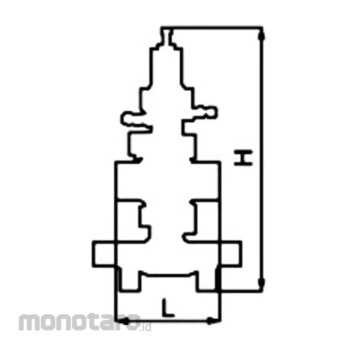

| Dimension L (mm) | 400 |
| Dimension H (mm) | 658 |
| Nominal Diameter (B) | 5 |
| Maximum Temperature (°C) | 220 |
| Connector | JIS 10KFF flange |
| Nominal Diameter A | 125 |
| Primary Pressure (MPa) | 0.1 to 1.0 |
| Secondary Adjustment Pressure (MPa) | 85% or less of the primary pressure (gauge pressure) |
| Suitable fluid | Steam |
| Primary Side Suitable Pressure (MPa) | 0.1 to 1.0 |
| Secondary Pressure Adjustment Range (MPa) | B：0.10 to 0.85 |
| Maximum Decompression Ratio | 20：1 |
| Diaphragm Material | SUS |
| Cv value | 112 |
| M Code | 53780695 |
| Berat (Kg) | 16.9 |
| Tanggal Produk Terdaftar | 17 June 2025 |
| Terakhir Diperbaharui | 21 October 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
High flow rate type. Stable secondary pressure control. Excellent sealing performance and small amount of valve seat leakage.
