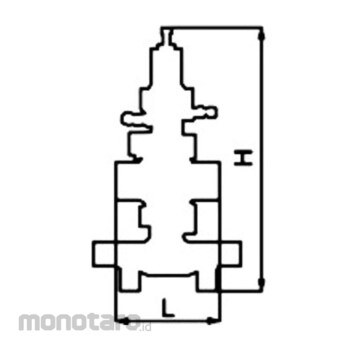

Yoshitake Pressure Reducing Valve GP-2000 (JIS 10K FF) End Flange Connection
#Grup produk P111934490
Sebelum PPN:
Rp20.999.900 - Rp95.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Connector | JIS 10KFF flange |
|---|---|
| Diaphragm Material | SUS |
| Material | Main valve / valve seat: SUS, pilot valve / pilot valve seat: SUS |
| Material (Main Unit) | FCD450 |
| Maximum Decompression Ratio | 20：1 |
| Maximum Temperature (°C) | 220 |
| Operating Temperature Range (°C) | 220 |
| Primary Pressure (MPa) | 0.1 to 1.0 |
| Primary Side Suitable Pressure (MPa) | 0.1 to 1.0 |
| Secondary Adjustment Pressure (MPa) | 85% or less of the primary pressure (gauge pressure) |
| Suitable fluid | Steam |
| Type | Pilot Type Diaphragm Type |
| Valve Seat Leakage | 0.01% or less of rated flow rate |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
High flow rate type. Stable secondary pressure control. Excellent sealing performance and small amount of valve seat leakage.
