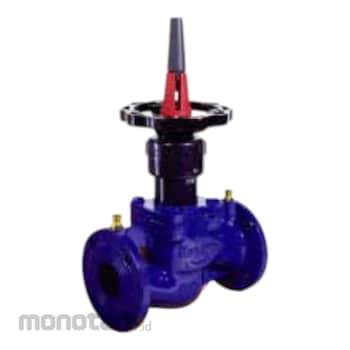

HONEYWELL Static Balancing Valve (Manual Balancing) V4-BLC-GP16-G080-I 3inch 1pc
Rp4.799.900
Persediaan
Spesifikasi Produk
| Model Number | V4-BLC-GP16-G080-I |
|---|---|
| Unit | 1pc |
| Size (inch) | 3 |
| Flange | BS EN 1092-2 PN16 |
| Operating Temperature (°C) | -10 to 120 |
| Nominal Pressure (bar) | 16 |
| Dimension L (mm) | 310 |
| Dimension H (mm) | 443 |
| Body Material | Cast Iron |
| Valve Type | Manual Balancing Valve |
| Standard | German Standard |
| Pressure Rating | PN16 |
| Kvs Value | 111 |
| Dimension D (mm) | 190 |
| Dimensions nxØd (mm) | 8 x 19 |
| Drill Size | G80 |
| Berat (Kg) | 5.2 |
| Tanggal Produk Terdaftar | 29 April 2025 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Peringatan
-Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
- Balancing through stroke limitation with digital pre-setting and visible pre-setting indicator- Equipped with 2 pressure test cocks for differential pressure measurement
- Rising spindle with EPDM O-ring sealing
- Pre-setting isn't altered when handwheel is turned
- Regulation screw protected by protection cap
