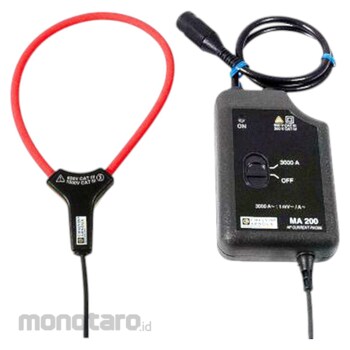

Chauvin Arnoux MiniFLEX MA200 Series Insulated Current Probes
The MA200 insulated current probes are equipped with a BNC output and can be connected to all types of oscilloscopes. They offer high bandwidth and are particularly suitable for viewing transient signals. The MA200 models can notably be used to display the control signals, the thyristor trigger current or the output signal of a power electronics power supply.
Excellent linearity, low phase shift
Flexible and lightweight
Models for multimeters, loggers or oscilloscopes
Chauvin Arnoux MiniFlex Current Probe MA200 250mm 1pc
Rp20.999.900
Persediaan
Spesifikasi Produk
| Model Number | MA200 |
|---|---|
| Unit | 1pc |
| Adapter Type | AC, Rogowski Coil |
| Best Accuracy | ±1% + 0.3 A |
| Maximum Conductor Size (mm) | 250 |
| Safety Category | CAT III 1000 V, CAT IV 600V |
| Output Type | Current |
| Connector Type | BNC |
| Battery Type (V) | 9 |
| Battery Life (hour) | 100 |
| Maximum Operating Temperature (°C) | +55 |
| Minimum Operating Temperature (°C) | -10 |
| Bandwidth (MHz) | 1 |
| Manufacture Part Number | P01120571 |
| Maximum AC Current (A) | 300 ac |
| Cable Length Extended (m) | 2 |
| Safety Category Level | CAT III, CAT IV |
| Safety Category Voltage (V) | 600 , 1000 |
| Berat (Kg) | 0.2 |
| Tanggal Produk Terdaftar | 17 April 2025 |
| Terakhir Diperbaharui | 27 May 2025 |
