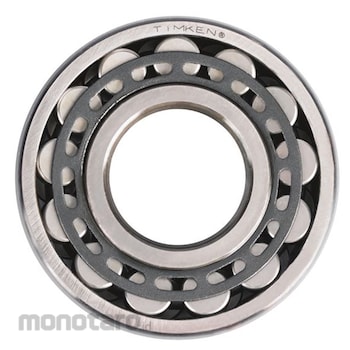

TIMKEN Spherical Roller Bearing EJW33 C3 Series 22238EJW33 C3 1pc
Rp13.999.900
Persediaan
Spesifikasi Produk
| Model Number | 22238EJW33 C3 |
|---|---|
| Unit | 1pc |
| Design Unit | Metric |
| d - Bore (mm) | 190 |
| Cage Type | EJ |
| Cage Material | Steel |
| Superseded Part | 22238CJW33C3 |
| e - ISO Factor¹ | 0.25 |
| Reference Thermal Speed Rating (Grease) (rpm) | 1500 |
| Reference Thermal Speed Rating (Oil)⁵ (rpm) | 1800 |
| Cg - Geometry Factor⁶ | 0.0967 |
| D - Outer Diameter (mm) | 340 |
| B - Inner Ring Width (mm) | 92 |
| B - Outer Ring Width (mm) | 92 |
| R - Inner Ring "To Clear" Radius⁷ (mm) | 3 |
| r - Outer Ring "To Clear" Radius⁸ (mm) | 3 |
| da - Inner Ring Backing Diameter (mm) | 226 |
| Da - Outer Ring Backing Diameter (mm) | 310 |
| C0 - Static Radial Rating (N) | 1960000 |
| C1(2) - Dynamic Radial Rating (Two-Rows) (N) | 1550000 |
| Series | 222 |
| Modification and Style Code | 2-pieces Steel Cage - Window Type, 3 Holes and Groove in O.D. |
| Berat (Kg) | 0.5 |
| Tanggal Produk Terdaftar | 11 December 2024 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Spherical Bearings are designed to manage high radial loads even when misalignment, poor lubrication, contamination, extreme speeds or critical application stresses are present.
Warning
Relate to Attribute:1 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use.
2 These factors apply for both inch and metric calculations. See engineering
3 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use.
4 These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use.
5 See thermal speed ratings in the engineering section.
6 Geometry constant for Lubrication Life Adjustment Factor a3l.
7 Maximum housing fillet radius that bearing corners will clear.
8 These maximum fillet radii will be cleared by the bearing corners.
