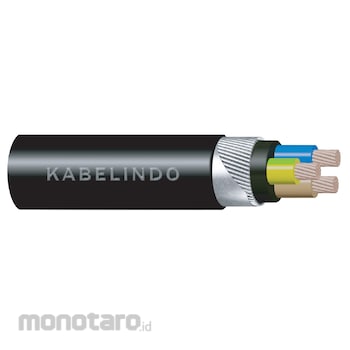

Kabelindo Power Cable NYFGBY Series (Kabel Listrik) NYRGBY 3x4 1m

Name: Kabelindo Power Cable NYFGBY Series (Kabel Listrik) NYRGBY 3x4 1m
Brand: Kabelindo
SKU: S044090463
Price: 53900 IDR
Availability: InStock

#Nomor SKU S044090463

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	NYRGBY
Unit	1m
Number of Core and Cross Section Area (mm²)	3x4
Nominal Thickness Insulation (mm)	1
Nominal Thickness Outer Sheath (mm)	1.8
Overall Diameter (mm)	Approx. 17.8
Minimum Insulation DC Resistance at 20°C (MΩ.km)	10
Current Carrying Capacity in Ground (A)	'41 at 30°C
Current Carrying Capacity in Air (A)	'34 at 30°C
Short Circuit Current Capacity (kA)	0.46 (at 1.0 second)
Berat (Kg)	3.0
Tanggal Produk Terdaftar	01 October 2024
Terakhir Diperbaharui	26 March 2026

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Conductor:
Annealed plain copper round solid or round circular stranded according to SNI IEC 60228
Insulation:
Extruded layer of Polyvinyl Chloride (PVC) complied with SNI IEC 60502-1
Inner Covering / Filler:
Extruded Polyvinyl Chloride (PVC), Black colour
Armour:
A layers of Galvanized round steel wires with a counter helix layer of galvanized steel tape.
Outer Sheath:
The Outer Sheath shall be a layer of Extruded Polyvinyl Chloride (PVC) Grade ST1 to SNI IEC 60502-1. Black colour.
Applications:
For general purpose power distribution in dry or wet location, best suitable for direct burying in ground.

Peringatan

- Foto hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya
- Warna produk mengacu pada nama dan spesifikasi produk yang tertera pada website
- Produk yang diterima akan sesuai dengan informasi yang tertera pada website"

Feature

• Fire Resistance
• Flame Retardant Cat. A/B/C
• Oil Resistance
• * UV Resistance
• Anti termite
• Anti rodent
• Low Smoke Zero Halogen
