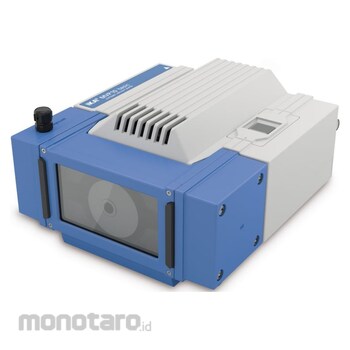

MVP 10 basic vacuum pump
For dry application, oil free
Slimline, compact design and long service lifeDirect service and simple maintenanceDiaphragm pumps are highly resistant to chemicals because all parts that come into contact with gas are made of PTFE or PTFE compounds.
Scope of delivery
MVP 10 basic vacuum pump
Vacuum hose
Silencer
Y hose connector 8 mm
Ika Laboratories Basic Vacuum Pumps 3980000 MVP 10 1set
Rp61.999.900
Persediaan
Spesifikasi Produk
| Model Number | 3980000 |
|---|---|
| Unit | 1set |
| Maximum Pump Rate (m³/hour) | 1.7 (50/60 Hz) |
| Maximum Pump Rate (L/minute) | 28.3 (50/60Hz) |
| Final Pressure Without Gas Ballast (mbar) | 7 |
| Final Pressure with Gas Ballast (mbar) | 15 |
| Suction Level | 2 |
| Cylinder | 2 |
| Suction Side Connection Diameter (mm) | 10 |
| Pressure Side Connection Diameter (mm) | 10 |
| Gas Ballast Valve | Yes |
| Input Pressure (mbar) | 7-1050 |
| Speed 50Hz (rpm) | 1380 |
| Speed 60Hz (rpm) | 1680 |
| Sound at Low Pressure (dB(A)) | 65 |
| Dimensions (WxHxD) (mm) | 245x155x320 |
| Permissible Ambient Temperature (°C) | 10 to 40 |
| Permissible relative humidity (%) | 80 |
| Protection class according to DIN EN 60529 | IP 54 |
| Power Voltage (V) | 230 |
| Frequency (Hz) | 50/60 |
| Input Power (W) | 180 |
| Berat (Kg) | 11.5 |
| Tanggal Produk Terdaftar | 25 September 2024 |
| Terakhir Diperbaharui | 27 May 2025 |
