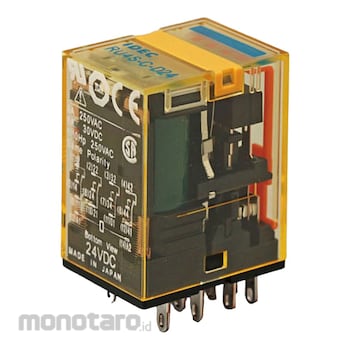

IDEC Universal Relay RU Series RU4S-C-D24 1pc

#Nomor SKU S043763184

Spesifikasi Produk

Model Number	RU4S-C-D24
Unit	1pc
Ambient Humidity to Use	5% to 85% (with no condensation)
Coil Rated Voltage (V)	DC24
Contact Resistance (miliΩ)	less than 50
Electrical Durability (times)	200000 or more
Insulation Resistance (MΩ)	100 or more (with DC500V mega)
Kinds	Universal Relay
Maximum Continuous Applied Voltage	110% (at 20°C relative to the rated value)
Mechanical Durability (times)	100 million or more
Minimum Applicable Load (VDC/mA)	1/1 (reference value)
Number of Poles	4
Operating Ambient Temperature (°C)	-55 to +60 (but no freezing)
Return Time (ms)	20 or less
Return Voltage	10% or more (at 20°C relative to the rated value)
Terminal Shape	Solder Terminal
Type	Without latching lever Standard type
Withstand Voltage	Between contact circuit and operating coil: 2500V AC for 1 minute; Between contact circuit: 2000V AC for 1 minute; Between same pole contacts: 1000V AC for 1 minute
Contact Configuration	4c
Protection Class	In a case
Power Consumption (W)	(DC) 0.9-1.0
M Code	06950736
Berat (Kg)	0.1
Tanggal Produk Terdaftar	30 August 2024
Terakhir Diperbaharui	24 November 2025
