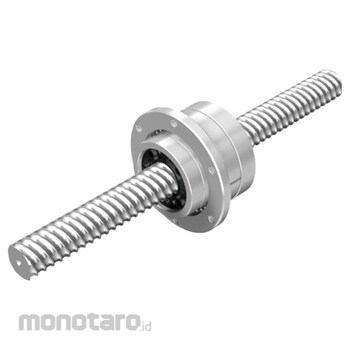

THK Precision Ball Screw with Rail BLR2020 Series BLR2020-3.6UU+500LT 500mm 1pc
Rp8.099.900
Persediaan
Spesifikasi Produk
| Model Number | BLR2020-3.6UU+500LT |
|---|---|
| Unit | 1pc |
| Lubrication and Dust Preventioin Accessories | End Seal |
| Overall Screw Shaft Length (mm) | 500 |
| Rolled Shaft | Yes |
| Screw Shaft Outer Diameter d (mm) | 20 |
| Lead Ph (mm) | 20 |
| Ball Center to-center Diameter (mm) | 20.75 |
| Thread Minor Diameter dc (mm) | 17.5 |
| Basic Load Rating Ca-C₀a (kN) | 11.1-24.7 |
| Outer Diameter d (mm) | 62 (0-0.007) |
| Flange Diameter D₁ (mm) | 78 |
| Overall Length L₁ (mm) | 54 |
| Ball Screw Dimensions H (mm) | 6 |
| Ball Screw Dimensions B₄ (mm) | 27.5 |
| Ball Screw Dimensions Te (mm) | 2 |
| Ball Screw Dimensions P₁ (mm) | 70 |
| Ball Screw Dimensions P₂ (mm) | 31 |
| Ball Screw Dimensions S (mm) | M5 |
| Ball Screw Dimensions t (mm) | 16 |
| Nut Inertial Moment (kg.m²) | 1.44x10⁻⁴ |
| Permissible Rotation Speed (rpm) | 3370 |
| Berat (Kg) | 1.8 |
| Tanggal Produk Terdaftar | 26 July 2024 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The Rotary Ball Screw is a rotary-nut ball screw unit that has an integrated structure consisting of a ball screw nut and a support bearing. The support bearing is an angular bearing that has a contact angle of 60, contains an increased number of balls and achieves large axial rigidity.
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsKetentuan dan Kondisi Barang
