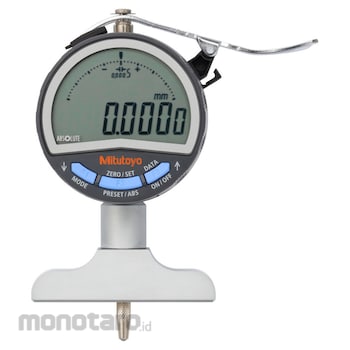

Mitutoyo Digimatic Depth Gauge 547-251A 1pc

Name: Mitutoyo Digimatic Depth Gauge 547-251A 1pc
Brand: Mitutoyo
SKU: S042069638
Price: 11999900 IDR
Availability: InStock

#Nomor SKU S042069638

Mitutoyo

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	547-251A
Unit	1pc
Stroke (mm)	12.7
Measuring Range (mm)	0-200
Minimum Reading (mm)	0.0005 (0.001/0.01 switchable)
Measuring Force (N)	1.5 or less
Flatness (µm)	2
Base Length (mm)	63.5
Base Width (mm)	16
ROHS Directive (Corresponding to 10 Substances)	Correspondence
Indication Error (µm)	±5
M Code	15426217
Berat (Kg)	0.6
Tanggal Produk Terdaftar	13 May 2024
Terakhir Diperbaharui	15 August 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

The digital display makes it possible for anyone to make measurements without reading errors. There is an output terminal for measurement data, and a statistical process control system and measurement system can be configured.
*We do not deliver to private residences (single-family homes or apartment complexes).
*Products whose part number includes (English version of included) will be calibrated at a calibration point based on the standards of an external calibration company based on the ISO quality management system, and will be shipped after the document is issued.

Warning

This Product Exclude Calibration Certificate

Feature

The digital display allows anyone to make measurements without misreading. There is an output terminal for the measurement data, allowing the configuration of a statistical process control system or measurement system.
