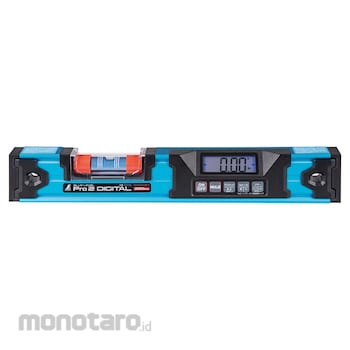

Shinwa Rules Blue Level 75316 Pro2 Digital Dustproof Waterproof 1pc

Name: Shinwa Rules Blue Level 75316 Pro2 Digital Dustproof Waterproof 1pc
Brand: Shinwa Rules
SKU: S042067207
Price: 3399900 IDR
Availability: InStock

#Nomor SKU S042067207

Shinwa Rules

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	75316
Unit	1pc
Material	Main unit, digital module: Aluminium, ABS resin, polycarbonate resin, Bubble tube: Acrylic resin, Liquid: Petroleum-based liquid
Dimensions (mm)	350x56x26
Mass (g)	360 (including batteries)
Operating Temperature Range (°C)	-10-50
Power Supply	2 AAA alkaline batteries (the supplied battery is a monitor battery)
Display Accuracy	Digital: 0 °, 90 °: ± 0.1 °, 0 °, other than 90 °: ± 0.2 °
Dust / Water Protection	IP65 equivalent
Automatic Power Off	About 10 minutes
Bubble Tube Sensitivity (mm)	0.35/m=0.0201°
Bubble Tube Accuracy (mm)	± 1.0 / m = ± 0.0573 °
Digital isplay	[Minimum unit] Angle: 0.05 °, Gradient: 0.1%, Rise: 1mm / m
Magnet	Yes
ROHS Directive (Corresponding to 10 Substances)	Correspondence
M Code	44346384
Berat (Kg)	0.4
Tanggal Produk Terdaftar	13 May 2024
Terakhir Diperbaharui	15 August 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Dustproof and waterproof performance IP65 specifications (Dustproof and waterproof performance is only for the digital measurement unit). With a buzzer function that changes the way the sound sounds in three stages depending on the tilt. With horizontal bubble tube cover. With an auto power off function (switchable) that automatically turns off the power if no operation continues for about 10 minutes. With calibration function and comparative measurement function (zero set).
Level at which rising, angle, and gradient can be measured in addition to horizontal and vertical measurements
* Do not use for any other purpose.

Warning

This Product Exclude Calibration Certificate

Feature

Dustproof and waterproof to IP65 (dustproof and waterproof only for the digital measurement unit). Equipped with a buzzer function that changes sound in three stages depending on the angle. Equipped with a horizontal bubble cover. Equipped with an auto power off function that automatically turns off the power after about 10 minutes of no operation (can be switched). Equipped with a calibration function and a comparison measurement function (zero set).

Use

In addition to horizontal and vertical measurements, this level also allows you to measure rise, angle, and gradient.
