INA Radial Insert Ball Bearing Tipe RAE RAE30-XL-NPP-NR 1pc

Name: INA Radial Insert Ball Bearing Tipe RAE RAE30-XL-NPP-NR 1pc
Brand: INA
SKU: S042061052
Price: 279900 IDR
Availability: InStock

#Nomor SKU S042061052

INA

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	RAE30-XL-NPP-NR
Unit	1pc
Outside Diameter D (mm)	62
Distance Snap Ring (A) (mm)	4.98
Lower Distance Retaining Ring Tolerance (mm)	-0.3
Outside Diameter Snap Ring (D2) (mm)	67.7
Lower Width Snap Ring Tolerance (mm)	-0.1
Bore Diameter (D) (mm)	30
Width B (mm)	23.8
Locking Collar Total Width (B1) (mm)	35.8
Fatigue Load Limit, Radial (Cur) (N)	480
Width Outer Ring C (mm)	18
Distance Raceway (S) (mm)	9
Basic Dynamic Load Rating, Radial (Cr) (N)	19500
Outside Diameter Locking Collar/Locknut (d3) (mm)	44
Width of Flats (W) (mm)	4
Calculation Factor (f0)	13.8
Basic Static Load Rating, Radial (C0r) (N)	11300
Rib Diameter Sealing Inner Ring (d2) (mm)	37.4
Berat (Kg)	0.3
Tanggal Produk Terdaftar	06 May 2024
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

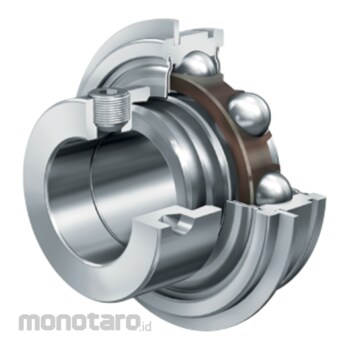

Radial insert ball bearings RAE..-NPP-NR, cylindrical outer ring, location by eccentric locking collar, slots in outer ring, P seals on both sides

Warning

- The photo is only a reference (illustration) according to its function
- Product color refers to the product name and specifications listed on the website
- Products received will be in accordance with the information listed on the website.
