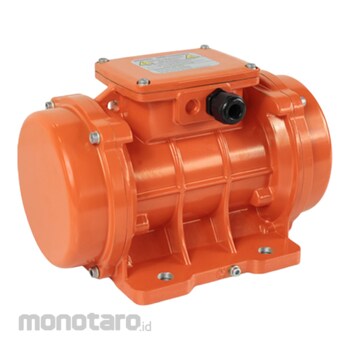

OLI Vibrator Motor MVE Series MVE60/3N-10A0 2 Poles 3000 RPM 1pc

Name: OLI Vibrator Motor MVE Series MVE60/3N-10A0 2 Poles 3000 RPM 1pc
Brand: OLI
SKU: S041688991
Price: 2299900 IDR
Availability: OutOfStock

#Nomor SKU S041688991

OLI

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	MVE60/3N-10A0
Unit	1pc
Poles	2 Poles
Speed (rpm)	3000
Centrigual Force (kg)	66
Input Power (kW)	0.09
Size	10A0
Cable Gland	M16
Standard Nominal Current	0.25
Dimension C (mm)	213
Dimensions m (mm)	45
Dimension A (mm)	Multiple Footprint (62-74, 33)
Dimension B (mm)	Multiple Footprint (106, 83-102)
Dimension G (mm)	Multiple Footprint (9, 7)
Dimensions d (mm)	130
Dimension E (mm)	135
Dimension F (mm)	11
Dimension H (mm)	50
Dimension I (mm)	96
Dimension L (mm)	107
Dimension N (mm)	85
Berat (Kg)	4.0
Tanggal Produk Terdaftar	19 April 2024
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Electric vibrating motors (MVE) for general applications in various industrial sectors on machines and vibrating tables. Available in 2 poles, as well as in direct current with different voltages, they are suitable for use with inverters (variable frequency drive) and have a centrifugal force ranging from 20 to 30,000 kg, adjustable on each individual model.
Warranty : 2years

Peringatan

- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya
- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
