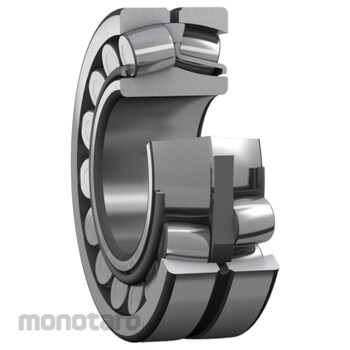

SKF Spherical Roller Bearing 22314 E/VA405 1pc

Name: SKF Spherical Roller Bearing 22314 E/VA405 1pc
Brand: SKF
SKU: S041679685
Price: 4099900 IDR
Availability: InStock

#Nomor SKU S041679685

SKF

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	22314 E/VA405
Unit	1pc
Bore Diameter (mm)	70
Outside Diameter (mm)	150
Width (mm)	51
Basic Dynamic Load Rating (kN)	413
Basic Static Load Rating (kN)	430
Reference Speed (rpm)	3400
Limiting Speed (rpm)	4500
SKF Performance Class	SKF Explorer
Number of Rows	2
Locating Feature, Bearing Outer Ring	Without
Bore Type	Cylindrical
Cage	Surface-hardened sheet metal
Radial Internal Clearance	C4
Tolerance Class	Normal
Tolerance Class for Dimensions	Normal, bore to P5 and outside diameter P6
Tolerance Class for Run-out	Normal
Sealing	Without
Lubricant	None
Relubrication Feature	With
Berat (Kg)	0.5
Tanggal Produk Terdaftar	17 April 2024
Terakhir Diperbaharui	21 July 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. This bearing design offers excellent performance in many types of vibrating machinery. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

Feature

- Accommodate misalignment
- High load carrying capacity
- Accommodate very high vibration levels
- Low friction and long service life
- Increased wear resistance
