IGUS Standard Cable & Hose Carrier 1501503803 Zipper, 1 Channels Mini Open Ow1.02In / 26Mm 1pc
Rp769.900
Persediaan
Spesifikasi Produk
Model Number | 1501503803 |
---|---|
Unit | 1pc |
UNSPSC | 24101707 |
Accessory Width (inch) | 1 |
Bend Radius (inch) | 1.5 |
Carrier Design | Enclosed |
Carrier Links Material | Igumid G |
Cavity Height (inch) | 0.7 |
Cavity Width (inch) | 0.6 |
Color | Black |
Crossbar Material | Igumid TE |
Crossbar Opening Design | Zip-Open |
Crossbar Style | Zipper |
Frame Stay | Cross Bar |
Length (inch) | 36 |
Loop Height (inch) | 3.9 |
Loop Length (inch) | 7.3 |
Max. Cable Diameter (inch) | 0.6 |
Maximum Operating Temperature (°F) | 248 |
Minimum Operating Temperature (°F) | -40 |
Mounting Bracket Design | Locking; Pivoting |
Mounting Bracket Type | Fixed End; Moving End |
Mounting Brackets Included | No |
Number of Channels | 1 |
Number of links | 30 |
Outside Height (inch) | 0.9 |
Outside Width (inch) | 1 |
Standards | VDE 0304 IIC UL94 HB |
Style | Zipper |
Type | Small |
Berat (Kg) | 0.3 |
Tanggal Produk Terdaftar | 05 April 2024 |
Terakhir Diperbaharui | 25 June 2025 |
Informasi Produk
Description

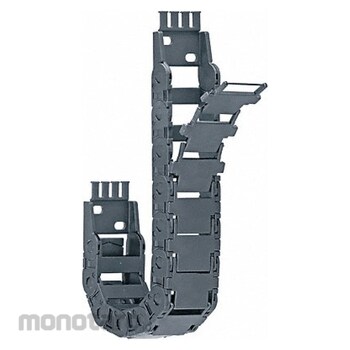

These cable and hose carriers have a zipper top on the outer radius that pulls open several connected covers at the same time. Users can access the carrier cavity without pulling off individual covers one at a time, saving time during installations or modifications. The zipper top can be separated from the carrier and rejoined in any link. These carriers allow cable and hose to lay in the carrier cavity, so they don't need to be pulled through the whole length of the carrier. They also have an open construction, which promotes air flow to prevent heat buildup. They are made of molded links that snap together to create customized lengths, so they're ideal for systems that need to be extended or for replacing cable or hose with terminated ends. Cable and hose carriers support and protect moving cable and hose in general purpose applications.
Peringatan
Catatan Penting: Tanpa GaransiProduk ini adalah barang original yang didatangkan langsung dari luar negeri. Karena statusnya sebagai produk impor, tidak tersedia garansi baik dari produsen maupun dari distributor lokal. Kami memastikan bahwa barang telah melalui pengecekan kualitas sebelum dikirim kepada Anda, namun segala risiko kerusakan atau cacat produk setelah pembelian menjadi tanggung jawab pembeli.
Dengan melakukan pembelian, Anda dianggap telah memahami dan menyetujui kondisi ini. Harap berhati-hati dan pertimbangkan dengan matang sebelum melakukan pembelian.
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for details
