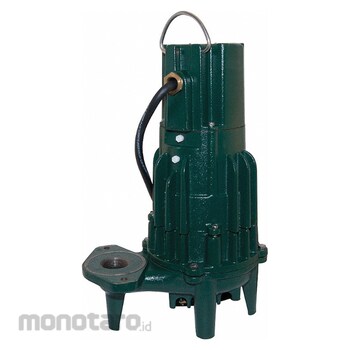

ZOELLER Pump Submersible Effluent (Pompa Celup Limbah) G189 No Switchincluded, 110ft Max. Head 2HP 1pc
Rp48.999.900
Persediaan
Spesifikasi Produk
| Model Number | G189 |
|---|---|
| Unit | 1pc |
| UNSPSC | 40151512 |
| Manufacturer Part Number | G189 |
| Horsepower (HP) | 2 |
| Rated Voltage (V) | 460 AC |
| Frequency (Hz) | 60 |
| Phase - Pumps | 3 |
| Amps (A) | 6 |
| Body Material | Cast Iron |
| Impeller Material | Bronze |
| Shaft Seal Material - Pumps | Carbon; Ceramic |
| Switch Actuation | No Switch Included |
| Switch Electrical Connection | No Switch Included |
| Flow Rate @ 10ft. of Head (gpm) | 140 |
| Flow Rate @ 15ft. of Head (gpm) | 133 |
| Flow Rate @ 20ft. of Head (gpm) | 130 |
| Flow Rate @ 40ft. of Head (gpm) | 109 |
| Flow Rate @ 60ft. of Head (gpm) | 85 |
| Flow Rate @ 80ft. of Head (gpm) | 51 |
| Flow Rate @ 100ft. of Head (gpm) | 17 |
| Maximum Head (ft) | 110 |
| Min. Sump Pit Dia. (inch) | 24 |
| Minimum Water Depth (inch) | 24 |
| Body Dia. (inch) | 12-3/4 |
| Width at Widest Point (inch) | 8 |
| Overall Height (inch) | 18-9/16 |
| Cord Length (ft) | 20 |
| Discharge (inch) | 1-1/2 FNPT |
| Max. Diameter Solids (inch) | 3/4 |
| Maximum Liquid Temperature (°F) | 130 |
| Duty cycle | Intermittent |
| Alarm Included | No |
| Rotation Speed (rpm) | 3450 |
| Thermal Protection | Thermal Protection |
| Agency Compliance | CSA/US; UL |
| Berat (Kg) | 45.9 |
| Tanggal Produk Terdaftar | 05 April 2024 |
| Terakhir Diperbaharui | 16 March 2026 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These three-phase 220 to 480V effluent pumps have three-phase motors that are more efficient than one phase, and they use a higher voltage that allows for larger motors that require less current than lower-voltage motors. They are used to drain treated water containing small solids from septic tanks and out to a drain field. Three-phase pumps require a control panel.
