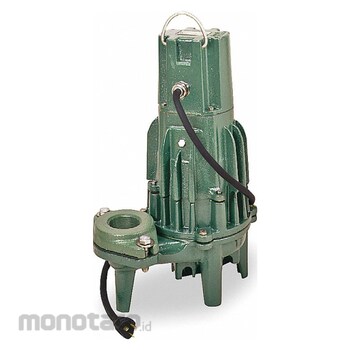

ZOELLER Pompa Celup Air Kotor
#Grup produk P109585699
Sebelum PPN:
Rp13.999.900 - Rp56.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Alarm Included | No |
|---|---|
| Body Material | Cast Iron |
| Cord Length (ft) | 20 |
| Discharge (inch) | 1-1/2 FNPT |
| Duty cycle | Intermittent |
| Frequency (Hz) | 60 |
| Max. Diameter Solids (inch) | 3/4 |
| Maximum Liquid Temperature (°F) | 130 |
| Rotation Speed (rpm) | 3450 |
| Shaft Seal Material - Pumps | Carbon; Ceramic |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These three-phase 220 to 480V effluent pumps have three-phase motors that are more efficient than one phase, and they use a higher voltage that allows for larger motors that require less current than lower-voltage motors. They are used to drain treated water containing small solids from septic tanks and out to a drain field. Three-phase pumps require a control panel.
Feature
Effluent Pump HP 1-1/2 Rated Voltage 460V AC Hz 60 Hz Phase - Pumps 3 Amps 4.6 Body Material Cast Iron Impeller Material Bronze Shaft Seal Material - Pumps Carbon Ceramic Switch Actuation No Switch Included Switch Electrical Connection No Switch Included Flow Rate @ 10 ft of Head 140 gpm Flow Rate @ 20 ft of Head 128 gpm Flow Rate @ 40 ft of Head 103 gpm Flow Rate @ 60 ft of Head 71 gpm Flow Rate @ 80 ft of Head 28 gpm Max Head 91 ft Min Sump Pit Dia 24 inUlasan Produk
Tidak ada ulasan
