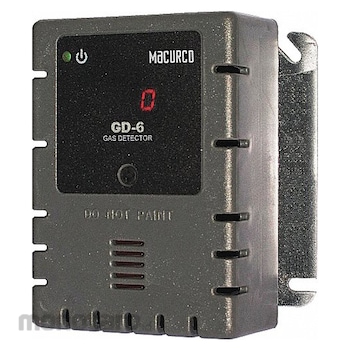

MACURCO Fixed Gas Detection GD6 Hydrogen/Methane/Propane, cETLus Certified Detector C3H8 Ch4 H2 0 To 50 % Lel 1pc
Rp20.999.900
Persediaan
Spesifikasi Produk
| Model Number | GD6 |
|---|---|
| Unit | 1pc |
| UNSPSC | 46171613 |
| For use with | 36CF9048GT5148GT52Building Automation SystemsBurglary Alarm PanelsFire Alarm Panels |
| Gas Detected | HydrogenMethanePropane |
| Standards | cETLus Certified |
| Voltage (V) | Low Voltage (12 to 24 AC 12 to 32 DC) |
| Includes | Manual |
| Product Type | Stand-Alone Detector & Controller or Transducer |
| Mounting Location | Wall |
| Number of Relays | 2 |
| Measurement Range | Propane Methane Hydrogen (0 to 50% LEL) |
| Sensor Type | Catalytic |
| Visual Alert Type | Green LED |
| Display Type | Digital |
| Number of Gases Detected | 3 |
| Ties Into | Building Automation Panels; Fire Alarm Panels |
| Coverage Area (ft²) | 900 |
| Input Channels | 2 |
| Sensor Life (year) | 5 |
| Interchangeable Sensors | No |
| NEMA Enclosure Rating | Not Rated |
| IP Rating | Not Rated |
| Power Source | Hardwired |
| Mount Type | Bolts/Screws |
| Features | Selectable Target Gas and Relay Actuation Settings |
| Display Screen Type | LED |
| Alert Type | Internal Buzzer |
| Overall Depth (inch) | 4 |
| Overall Height (inch) | 4.5 |
| Overall Width (inch) | 2.12 |
| Maximum Operating Temperature (°F) | 122 |
| Status indicator | LED |
| Minimum Operating Temperature (°F) | -4 |
| Housing Color | Gray |
| Input Current (mA) | 23 @ 24V DC (Standby); 50 @ 24V DC (Fan Relay); 75 @ 24V DC (Alarm) |
| Output Type | Analog |
| Output Current (mA) | 4 to 20 |
| Resolution | 1% LEL |
| Maximum Operating Humidity (%) | 90 |
| Minimum Operating Humidity (%) | 10 |
| Market | Commercial |
| Alarm Setting Adjustment | Adjustable Alarm Setting |
| Number of Digits | 3 |
| For Environment | Hazardous Locations |
| Manufacturer Part Number | GD-6 |
| Sub Brand | Macurco |
| Series | Commercial Series |
| Detection Product Type | Gas Detector |
| Berat (Kg) | 0.5 |
| Tanggal Produk Terdaftar | 03 April 2024 |
| Terakhir Diperbaharui | 25 June 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These legs are compatible with Tennsco workbenches.
