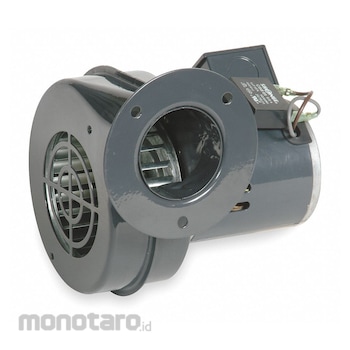

DAYTON Standard Forward-Curved Blowers 3FRE9 3 7/8 in Wheel Dia, Direct Drive 72 Cfm 230V 0.18A 3100 Rpm 1pc

Name: DAYTON Standard Forward-Curved Blowers 3FRE9 3 7/8 in Wheel Dia, Direct Drive 72 Cfm 230V 0.18A 3100 Rpm 1pc
Brand: DAYTON
SKU: S040726809
Price: 2099900 IDR
Availability: OutOfStock

#Nomor SKU S040726809

DAYTON

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	3FRE9
Unit	1pc
UNSPSC	40101601
Number of Inlets	1
Number of Speeds	1
Phase	1
Minimum Fan Speed (rpm)	-
Motor Insulation Class	B
Shaft Diameter (mm)	8
Airflow @ 0.000 in SP (cfm)	72
Airflow @ 0.100 in SP (cfm)	71
Airflow @ 0.250 in SP (cfm)	68
Airflow @ 0.400 in SP (cfm)	61
Airflow @ 0.500 in SP (cfm)	56
Rotation	CW
Chemical Resistant	No
Compatible Speed Control	No
Corrosion Resistant	No
For High-Static Pressure Applications	No
Hazardous Location Application	No
High-Efficiency Motor	No
Includes Mounting Hardware	No
Speed Controllable	No
Minimum Ambient Temperature (°C)	-10
Nameplate Voltage (VAC)	230
Maximum Ambient Temperature (°F)	104
Maximum Inlet Air Temperature (°F)	104
OEM Replacement	Yes
Thermal Overload Protection	Yes
Current (A)	0.18
Motor Horsepower (HP)	1/70
Motor Speed (rpm)	3080
Maximum Fan Speed (rpm)	3100
Bearing Type	Ball
Housing Color	Gray
Motor Enclosure	Open
Motor IP Rating	IP20
Manufacturer Part Number	3FRE9
Maximum Static Pressure (in wc)	1-1/8
Frequency (Hz)	50/60
Housing Material	Steel
Wheel Material	Steel
Outlet Shape	Round
Flange Size (in dia)	4-1/16
Housing Material Finish	Enamel
Outlet Type	Flanged
Wheel Width (inch)	1-7/8
Outlet Diameter (inch)	2-1/8
Inlet Diameter (inch)	3-1/8
Wheel Diameter (inch)	3-7/8
Housing Height (inch)	5-3/4
Overall Height (inch)	5-3/4
Housing Width (inch)	6-1/4
Overall Width (inch)	6-1/4
Assembly	Assembled
For Air Type	Clean Air
Housing Depth (inch)	6-7/16
Overall Depth (inch)	6-7/16
AMCA Fan Class	Not Rated
Sound Level	Not Rated
Spark Resistant Construction Type	Not Rated
Motor Duty Class	Continuous
Wheel Material Finish	Galvanized
Drive Type	Direct Drive
Motor Frame Designation (inch)	3.3 PSC motor
Mounting Orientation	Multiposition
Wheel Type	Forward-Curved
Includes	Discharge Mounting Flange
Motor Type	Permanent Split Capacitor
Discharge Position	Bottom Horizontal; Down Blast; Top Horizontal; Up Blast
Standards	CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower
Berat (Kg)	2.3
Tanggal Produk Terdaftar	02 April 2024
Terakhir Diperbaharui	07 October 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Bypass humidifiers reuse their water supply, so they use less water than fan-powered humidifiers. Warm air from a building's furnace passes over the humidifiers' water tray, and the air absorbs the water. The HVAC system then circulates the humidified air into the surrounding area. These units can be installed in the supply or return ducts of the HVAC system, and they require both the furnace and HVAC system to be on in order to operate. Bypass duct-mount humidifiers do not have a fan or fan motor.

Peringatan

Catatan Penting: Tanpa Garansi
Produk ini adalah barang original yang didatangkan langsung dari luar negeri. Karena statusnya sebagai produk impor, tidak tersedia garansi baik dari produsen maupun dari distributor lokal. Kami memastikan bahwa barang telah melalui pengecekan kualitas sebelum dikirim kepada Anda, namun segala risiko kerusakan atau cacat produk setelah pembelian menjadi tanggung jawab pembeli.
Dengan melakukan pembelian, Anda dianggap telah memahami dan menyetujui kondisi ini. Harap berhati-hati dan pertimbangkan dengan matang sebelum melakukan pembelian.

Feature

Features: Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures; the Motor has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life; This Dynamically Balanced Blower Provides Smooth and Quiet Operation
