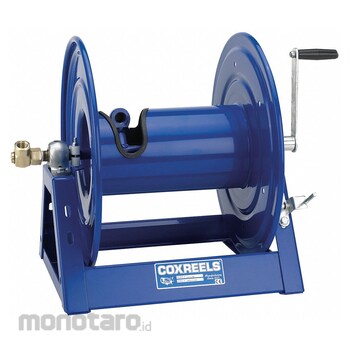

COXREELS Multipurpose Hand-Crank Hose Reels 11255175 175 ft (3/4 in I.D.), 17 5/8 in L x 23 3/8 in W x 18 3/4 in H Hand Crank Id Blue 1pc
Rp12.999.900
Persediaan
Spesifikasi Produk
| Model Number | 11255175 |
|---|---|
| Unit | 1pc |
| UNSPSC | 40142121 |
| Number of Mount Holes | 6 |
| Mounting Hole Center to Center Height (inch) | 10 |
| Reel Width (inch) | 18 |
| Standards | CE |
| Enclosed | No |
| Fasteners Included | No |
| For Dual Hose | No |
| Includes Hose | No |
| Includes Leader Hose | No |
| Minimum Operating Temperature (°F) | -40 |
| Maximum Operating Temperature (°F) | 250 |
| Swivel Inlet Type | NPT |
| Swivel Outlet Type | NPT |
| Includes Gooseneck | Yes |
| Reel Color | Blue |
| Maximum Operating Pressure | 3000 |
| Swivel Material | Brass |
| Reel Material | Steel |
| Mount Hole Diameter (inch) | 1/2 |
| Swivel Inlet Size (inch) | 3/4 |
| Swivel Inlet Thread Size (inch) | 3/4 |
| Swivel Outlet Size (inch) | 3/4 |
| Swivel Outlet Thread Size (inch) | 3/4 |
| Swivel Inlet Gender | Female |
| Swivel Outlet Gender | Female |
| Seal Material | Nitrile |
| Handle Length (inch) | 3-1/2 |
| Reel Diameter (inch) | 6-1/4 |
| Mount Base Height (inch) | 15-3/8 |
| Overall Length (inch) | 17-5/8 |
| Overall Height (inch) | 18-3/4 |
| Mounting Hole Center to Center Width (inch) | 21-3/8 |
| Mount Base Width (inch) | 23-3/8 |
| Overall Width (inch) | 23-3/8 |
| Drive Type | Hand Crank |
| Base Motion Type | Stationary |
| Includes | Locking Pin |
| Reel Finish | Powder Coated |
| Overall Dimensions LxWxH (in) | 17-5/8x23-3/8x18-3/4 |
| Hose Reel Type | Wall Mount Hose Reel |
| Hose Capacity (ft) | 175 |
| Hose Capacity (in I.D.) | 3/4 |
| Bearing Construction | Permanently Lubricated |
| Features | "A" Frame; CNC Spun Disc; Heavy Duty Steel Construction; Outlet Riser |
| Hose Reel Primary Application | Air; Chemical Fluid Transfer; Fire Booster Hose; Hydro Seeding; Oil/Lubrication; Pest Control; Pressure Washer; Spraying Operation; Washdown; Water |
| Berat (Kg) | 25.5 |
| Tanggal Produk Terdaftar | 02 April 2024 |
| Terakhir Diperbaharui | 07 October 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Tri-clamp sanitary gaskets fit into the grooves of a tri-clamp tube fitting. Tri-clamp fittings, also called tri-clover fittings, clamp together two tubes in a process line and the gasket provides a sterile, leakproof seal.
