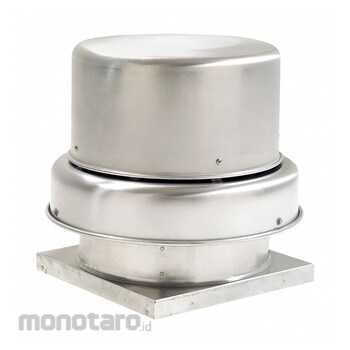

DAYTON Centrifugal Downblast Exhaust Fans 4YC66 Direct Drive, Includes Drive Pack Alu 22 Dia 14 H Roof W.Motor 1pc

Name: DAYTON Centrifugal Downblast Exhaust Fans 4YC66 Direct Drive, Includes Drive Pack Alu 22 Dia 14 H Roof W.Motor 1pc
Brand: DAYTON
SKU: S040571423
Price: 13999900 IDR
Availability: OutOfStock

#Nomor SKU S040571423

DAYTON

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	4YC66
Unit	1pc
UNSPSC	40101502
Number of Speeds	1
Phase	1
Spark Resistant Construction Type	A
Base Length (inch)	19
Base Width (inch)	19
Frequency (Hz)	60
High-Efficiency Motor	No
Motor Horsepower (HP)	1/8
Nameplate Voltage (VAC)	115
Exhaust Airflow @ 0.000 in SP (cfm)	717
Exhaust Airflow @ 0.125 in SP (cfm)	570
Exhaust Airflow @ 0.250 in SP (cfm)	389
Maximum Ambient Temperature (°F)	130
Maximum Inlet Air Temperature (°F)	130
Maximum Static Pressure (in wc)	1/4
Includes Drive Package with Motor	Yes
Maximum Fan Speed (rpm)	1050
Brake Horsepower (hp)	1/25
Mounting Location	Roof
Housing Material Fabrication	Spun
Damper Size (inch)	12x12
Compatible Damper Grainger Part Number	4HX64
Compatible Speed Control	48C172
Base shape	Square
Housing Length (inch)	21.8
Housing Width (inch)	21.8
Base Height (inch)	1-3/4
Housing Material	Aluminium
Wheel Material	Aluminium
Mounting Orientation	Vertical
Assembly	Assembled
For Air Type	Clean Air
Wheel Diameter (inch)	10-1/2
Overall Height (inch)	13-7/8
Overall Diameter (inch)	21-3/4
Overall Length (inch)	21-3/4
Overall Width (inch)	21-3/4
Mount Type	Roof Curb
Electrical Connection	Power Cord
Current	2.6/2.3/1.4
Drive Type	Direct Drive
Motor Enclosure	Open Air Over
Speed Controllable	Variable Speed
Motor Location	Out of Airstream
Wheel Type	Backward Inclined
Standards	AMCA Sound and Air; CSA; UL/cUL 705
Application	Industrial and Commercial Applications
Compatible Curb Grainger Part Number	2RB75; 2ZV82; 4C453; 4C670; 4HX38; 4HX46
Sound Level	4.5 sones @ 0.125 in SP and 5 ft; 4.5 sones @ 0.250 in SP and 5 ft; 5.4 sones @ 0.000 in SP and 5 ft
Speed (rpm)	1550
Berat (Kg)	13.2
Tanggal Produk Terdaftar	01 April 2024
Terakhir Diperbaharui	30 July 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Clean air fans exhaust odorous, hot, or stale air. These fans use a propeller that's directly mounted on the motor shaft. This reduces friction and improves efficiency compared to a belt-drive fan. Direct-drive fans have fewer moving parts and typically require less maintenance than belt-drive fans.

Peringatan

Catatan Penting: Tanpa Garansi
Produk ini adalah barang original yang didatangkan langsung dari luar negeri. Karena statusnya sebagai produk impor, tidak tersedia garansi baik dari produsen maupun dari distributor lokal. Kami memastikan bahwa barang telah melalui pengecekan kualitas sebelum dikirim kepada Anda, namun segala risiko kerusakan atau cacat produk setelah pembelian menjadi tanggung jawab pembeli.
Dengan melakukan pembelian, Anda dianggap telah memahami dan menyetujui kondisi ini. Harap berhati-hati dan pertimbangkan dengan matang sebelum melakukan pembelian.

Feature

Features: Features a Fully Rolled Windband Bead for Increased Stability and Easy Transport; Fresh Outside Air is Drawn in Under the Motor Cover to Maximize Motor Life; Nema 1 Junction Box Located in Motor Enclosure; Nonoverloading Centrifugal Wheel Design; Optional Nema 1 and 4 Disconnects Available

Ketentuan dan Kondisi Barang

Bergaransi

Informasi garansi bisa ditemukan di spesifikasi produk.
WARRANTY MonotaRO Private Brand (1 year)
