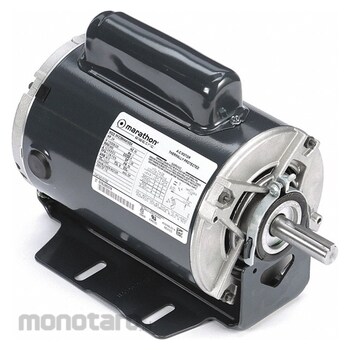

MARATHON MOTORS Capacitor-Start NEMA Frame General Purpose AC Motor 5KC38NN410X Open Dripproof Cradle Base Mount 3/4 HP 3 450rpm 115/208-230V 1pc
Rp8.299.900
Persediaan
Spesifikasi Produk
| Model Number | 5KC38NN410X |
|---|---|
| Unit | 1pc |
| UNSPSC | 26101602 |
| Ins. Class | B |
| No. of Speeds | 1 |
| Frame | 56 |
| Frequency (Hz) | 60 |
| Inverter Rated | No |
| Usable @ 200V | No |
| Weight (lbs) | 23 |
| HP | 3/4 |
| Maximum Ambient Temperature (°F) | 104 |
| Usable @ 208V | Yes |
| Shaft Dia. | 5/8 |
| Motor Bearings | Ball |
| Motor Service Factor | 1.25 |
| Motor Thermal Protection | Auto |
| Nominal Efficiency (%) | 68 |
| Motor Frame Material | Steel |
| Motor Shaft Design | Keyed |
| Nameplate RPM | 3,450 |
| Shaft Length (in) | 1-7/8 |
| Motor Shaft Rotation | CW/CCW |
| Phase | Single |
| Length Less Shaft | 9-7/16 |
| Overall Length | 11-5/16 |
| Duty cycle | Continuous |
| Motor Mounting Position | Horizontal |
| RPM Range | 3,001-3,600 |
| Manufacturer Part Number | 5KC38NN410X |
| Motor Mounting Type | Cradle Base |
| Voltage (V AC) | 115/208-230 |
| Full Load Amps (A) | 10.0/4.9-5.0 |
| Motor Enclosure Design | Open Dripproof |
| Motor Design | Capacitor-Start |
| Motor Application | General Application |
| Standards | CSA Certified; UL Listed |
| Berat (Kg) | 11.2 |
| Tanggal Produk Terdaftar | 01 April 2024 |
| Terakhir Diperbaharui | 24 December 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
NEMA 56 frame capacitor-start general purpose AC motors have a standard 5/8" diameter, 1-7/8" length shaft whose center is 3-1/2" above the base mounting surface. Variations to the frame's standard dimensions and design are indicated by a letter designation following the frame number, such as 56Z or 56HC. The letter “Z” indicates that the frame has a nonstandard shaft, “H” indicates that the frame has a set of mounting holes at 3" and 5", and “C” indicates that the motor can be face mounted. These frame standards and letter designations are defined by the National Electrical Manufacturers Association (NEMA).
