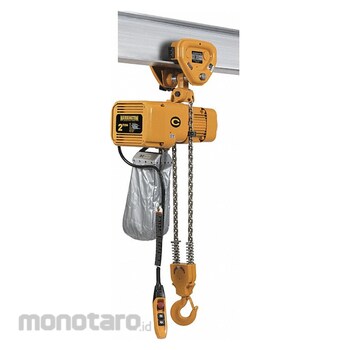

HARRINGTON Push-Trolley Electric Chain Hoist NERP020CD15460v H4 - Heavy Duty, Push Trolley Elec. W/Trolley 4000 Lb 1set
Rp199.999.900
Persediaan
Spesifikasi Produk
| Model Number | NERP020CD15460v |
|---|---|
| Unit | 1set |
| UNSPSC | 24101602 |
| Mount Type | Push Trolley |
| Duty Classification | H4 - Heavy Duty |
| Lifting Capacity (lbs) | 4000 |
| Tonnage - Lifting Capacity (t) | 2 |
| Number of Speeds | 2 |
| Speed Programmability | Programmable by VFD |
| Lift Speed (fpm) | 1-7 |
| Trolley Wheel Diameter (inch) | 5 |
| Starts per Hour | 120; 240 |
| Minimum Lift Speed (fpm) | 1 |
| Maximum Lift Speed (fpm) | 7 |
| Lift Length (ft) | 15 |
| Minimum Radius Curve (inch) | 59-3/32 |
| Headroom (inch) | 27-13/32 |
| For Beam Flange Width (inch) | 3-7/32 – 6-1/32 |
| For Minimum Beam Flange Width (inch) | 3-7/32 |
| For Maximum Beam Flange Width (inch) | 6-1/32 |
| For Minimum Beam Height (inch) | 5 |
| Motor Horsepower (HP) | 1-1/4 |
| Operating Voltage (V) | 460 AC |
| Phase | 3 |
| Max Current Draw (A) | 5.1 |
| Lifting Hook Type | Swivel Hook with Safety Latch |
| Lifting Hook Opening Width (inch) | 1-1/2 |
| Lifting Hook Material | Carbon Steel |
| Includes Clutch | Clutch Included |
| Includes Brake | Brake Included |
| Clutch | Friction Clutch |
| Brake Type | DC Current |
| Thermal Protection | Included |
| Overload Protection Included | Yes |
| Number of Load Chains | 1 |
| Number of Reeves | 2 |
| Minimum Retracted Length (inch) | 27-13/32 |
| Controls | Push Button Pendant |
| Hoist IP Rating | IP55 |
| Pendant IP Rating | IP65 |
| Chain Material | Alloy Steel |
| Chain Grade | Grade 80 |
| Trolley Wheel Material | Steel |
| Included Components | Chain Container; Pendant; Quick Disconnect Plugs on Pendant; Safety Latch Hook |
| Features | Count Hour Meter; Extreme Duty Motor; Push Trolley; Smart Brake Technology |
| Body Material | Aluminium |
| Body Width (inch) | 14-13/16 |
| Body Depth (inch) | 8-5/16 |
| Body Length (inch) | 24-1/8 |
| Controller Cord Length (ft) | 11 |
| Color | Yellow |
| For Outdoor Use | Yes |
| Body Finish | Enamel |
| Chain Finish | Nickel Plated |
| Resistance Properties | Corrosion Resistant; Fatigue Resistant; Wear Resistant |
| Standards | ANSI/ASME B30.16; ANSI/ASME HST-1M; ANSI/NFPA 70; UL 1340; UL Listed |
| Manufacturer Part Number | NERP020CD-15 / 460v |
| Berat (Kg) | 87.2 |
| Tanggal Produk Terdaftar | 29 March 2024 |
| Terakhir Diperbaharui | 30 July 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These extended-use push-trolley electric chain hoists are rated to exceed 300 starts/stops per hour. They are suitable for high-volume construction and manufacturing applications where loads are frequently lifted and positioned.
