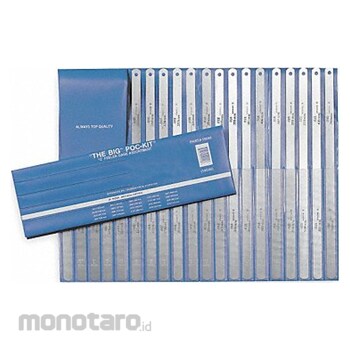

PRECISION BRAND Feeler Gauge Set 19990 Inch/Metric, 20 Feeler Blades Dimension Type 1pc
Rp2.199.900
Persediaan
Spesifikasi Produk
| Model Number | 19990 |
|---|---|
| Unit | 1pc |
| UNSPSC | 41111617 |
| Finish | Unfinished |
| Blade Length (inch) | 12 |
| Blade Material | Steel |
| Blade Style | Straight Blade |
| Dimension Type | Inch/Metric |
| Included Certification | Certificate of Conformance |
| Maximum Thickness (mm) | 0.762 |
| Minimum Thickness (mm) | 0.025 |
| Non-Marring | No |
| Number of Feeler Blades | 20 |
| Thickness Range (inch) | 0.001 to 0.03 |
| Application | Used in Manufacturing and Maintenance Operations, Wherever Setting Close Spacing or Checking Extremely Tight Tolerances is Required |
| Blade Width (inch) | 1/2 |
| Color | Blue |
| Hardness | RC 48-62 |
| Locking Device | No |
| Markings | Inch with Metric Equivalent |
| Non-Magnetic | No |
| Standards | FED-GGG-G-17C |
| Maximum Thickness (inch) | 0.025 |
| Minimum Thickness (inch) | 0.001 |
| Berat (Kg) | 0.3 |
| Tanggal Produk Terdaftar | 28 March 2024 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Steel feeler gauge sets are used to measure gap widths by inserting the gauge into a gap. They can also be used as high-precision, durable shims. They are commonly used by engineers, machinists, and in light and heavy production, automotive, and woodworking applications.
Peringatan
Catatan Penting: Tanpa GaransiProduk ini adalah barang original yang didatangkan langsung dari luar negeri. Karena statusnya sebagai produk impor, tidak tersedia garansi baik dari produsen maupun dari distributor lokal. Kami memastikan bahwa barang telah melalui pengecekan kualitas sebelum dikirim kepada Anda, namun segala risiko kerusakan atau cacat produk setelah pembelian menjadi tanggung jawab pembeli.
Dengan melakukan pembelian, Anda dianggap telah memahami dan menyetujui kondisi ini. Harap berhati-hati dan pertimbangkan dengan matang sebelum melakukan pembelian.
Feature
Tolerance (inch) :0.001-0.0015 ±0.00012; 0.002 ±0.00016; 0.0025-0.0004 ±0.00024; 0.007 ±0.00028; 0.008-0.009 ±0.0032; 0.010-0.012 ±0.00035; 0.013-0.015 ±0.00043; 0.016-0.019 ±0.00047; 0.020-0.024 ±0.00055; 0.025-0.031 ±0.00067; 0.032-0.034 ±0.00075; 0.040 ±0.00094; 0.050 ±0.00050. Width 0.500 ±0.005
Included Blades :
0.001 in/0.025mm0.0015 in/0.038mm0.002 in/0.051mm0.003 in/0.076mm0.004 in/0.102mm0.005 in/0.127mm0.006 in/0.152mm0.007 in/0.178mm0.008 in/0.203mm0.009 in/0.229mm0.01 in/0.254mm0.012 in/0.305mm0.014 in/0.356mm0.015 in/0.381mm0.016 in/0.406mm0.018 in/0.457mm0.02 in/0.508mm0.022 in/0.559mm0.025 in/0.635mmand 0.03 in/0.762mm
